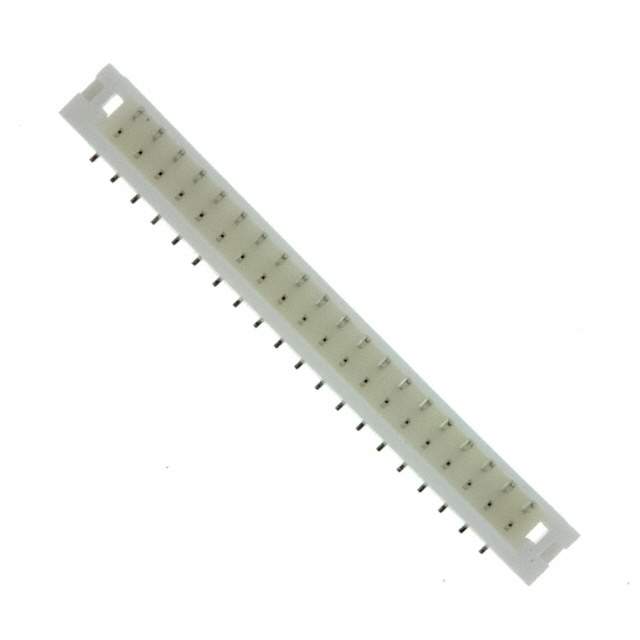

BM20B-SURS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM20B-SURS-TF(LF)(SN)

Part No BM20B-SURS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 0.8MM / Connector Header Surface Mount 20 position 0.031" (0.80mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SUR
Package Tape & Reel (TR)
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.031" (0.80mm)
Number of Positions 20
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.106" (2.70mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.2A, 0.5A
Voltage Rating 30V
Mated Stacking Heights 3.95mm
Base Product Number BM20B-SU
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2030-2,455-2030-1,BM20BSURSTFLFSN,455-2030-6
Standard Package 2,500
Win Source Part Number 1172575-BM20B-SURS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM20B-SURS-TF(LF)(SN) CAD Model

Description

The 1172575-BM20B-SURS-TF(LF)(SN) electronic component is a rectangular connector header with male pins. 1172575-BM20B-SURS-TF(LF)(SN) is designed by .

  • Connector Shape: Rectangular
  • Connector Type: Header
  • Pin Type: Male
  • Series: SUR
  • Positions Loaded: 20 (All)
  • Contact Type: Outer Shroud
  • Contact Material: Copper Alloy
  • Voltage Rating: 30V
  • Mated Stacking Height: 3.95mm
  • Flammability Rating: UL94 V-0
  • Mounting Type: SMD (SMT)
  • Operating Temperature: -25°C to 85°C
