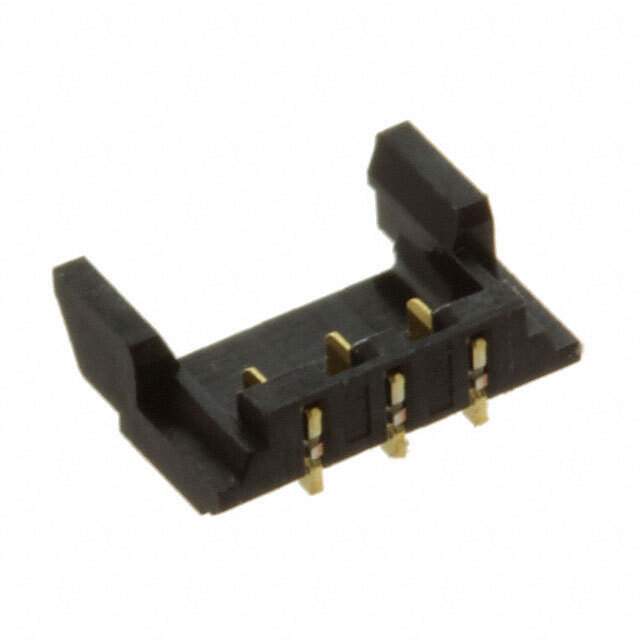

BM03B-ADHKS-GAN-ETB(LF)(SN)

Part No BM03B-ADHKS-GAN-ETB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 3POS 1.3MM / Connector Header Surface Mount, Right Angle 3 position 0.051" (1.30mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ADH
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.051" (1.30mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.069" (1.75mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 3A
Voltage Rating 30V
Base Product Number BM03B-AD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2900-6,BM03BADHKSGANETBLFSN,455-2900-1,455-2900-2
Standard Package 5,000
Win Source Part Number 996411-BM03B-ADHKS-GAN-ETB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM03B-ADHKS-GAN-ETB(LF)(SN) CAD Model

Description

BM03B-ADHKS-GAN-ETB(LF)(SN) from JST Sales America Inc. is a connector housing used in interconnect designs where reliable wire-to-board or compact signal connectivity is important. In practical terms, parts in this category are commonly selected for consumer electronics, industrial controls, compact embedded systems, and other assemblies that need organized cable termination and dependable mating performance. Engineers typically consider JST housings when balancing board space, assembly consistency, and ecosystem compatibility with matching terminals and headers. For sourcing teams, this part may be relevant in both new builds and maintenance purchasing where connector family continuity matters. The current lifecycle status is listed as unknown, so design teams should treat long-term availability cautiously until confirmed directly with JST or an authorized distributor. RoHS compliance information is not available in the provided data and should be verified using the latest manufacturer datasheet, product declaration, or distributor compliance documentation before release to production.
