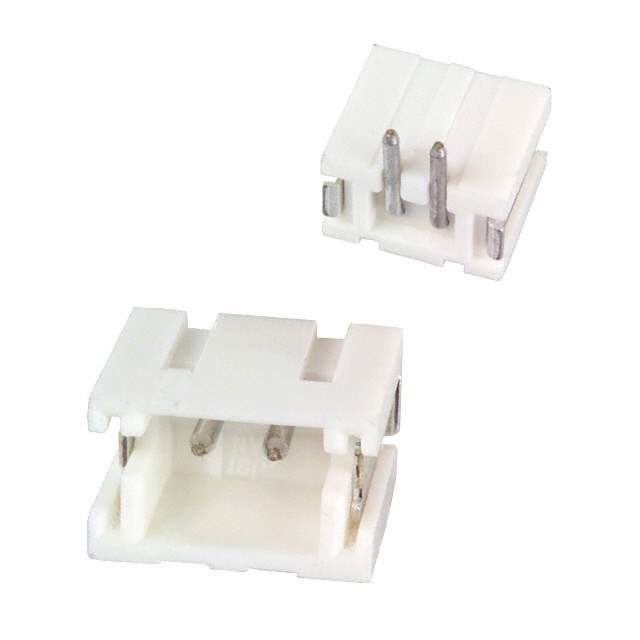

Same model may have multiple batches, images only for reference.

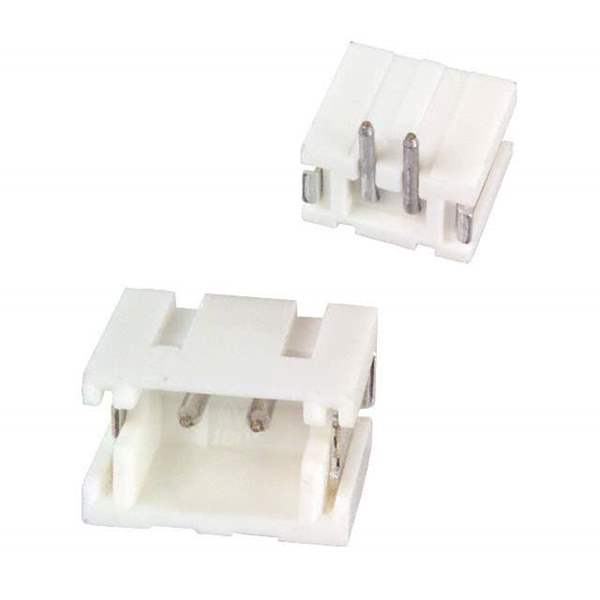

B2B-ZR-SM4-TFT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B2B-ZR-SM4-TFT(LF)(SN)

Part No B2B-ZR-SM4-TFT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197"
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 6.4mm
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 713608-B2B-ZR-SM4-TFT(LF)(SN)
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B2B-ZR-SM4-TFT(LF)(SN) CAD Model

Description

The JST Sales America Inc. 713608-B2B-ZR-SM4-TFT(LF)(SN) is a header connector with two positions, designed for board to cable/wire applications, manufactured by JST Sales America Inc..

  • Positions: Two
  • Design: Shrouded 4-wall
  • Fastening Type: Detent lock
  • Contact Type: Male pin
  • Material: Brass with tin plating
  • Voltage Rating: 50V
  • Mated Stacking Height: 6.4mm
  • Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
  • Contact Finish: Tin
  • Operating Temperature: -25°C to 85°C

This connector is suitable for applications requiring pick and place and solder retention features. It is supplied in a reel packaging with limited supply and demand status.
