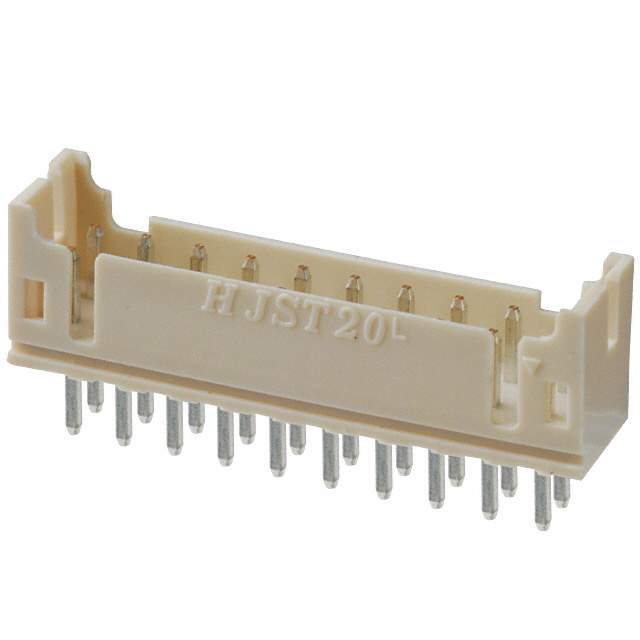

B20B-PHDSS(LF)(SN)

Name: B20B-PHDSS(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1189181
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B20B-PHDSS(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER VERT 20POS 2MM / Connector Header Through Hole 20 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PHD
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.114" (2.90mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.291" (7.40mm)
Insulation Height	0.256" (6.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	8.8mm
Base Product Number	B20B-PHD
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	455-1767,(D)B20B-PHDSS(LF)(SN),B20BPHDSSLFSN
Standard Package	250
Win Source Part Number	1189181-B20B-PHDSS(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B20B-PHDSS(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 1189181-B20B-PHDSS(LF)(SN) is a rectangular connector header designed for through-hole installation.

Positions: 20
Pitch: 0.079” (2.00mm)
Series: PHD
Feature: Detent Lock
Package: Bulk packaging
Pieces per Package: 250
ECCN: EAR99
HTSUS: 8536.69.4040
