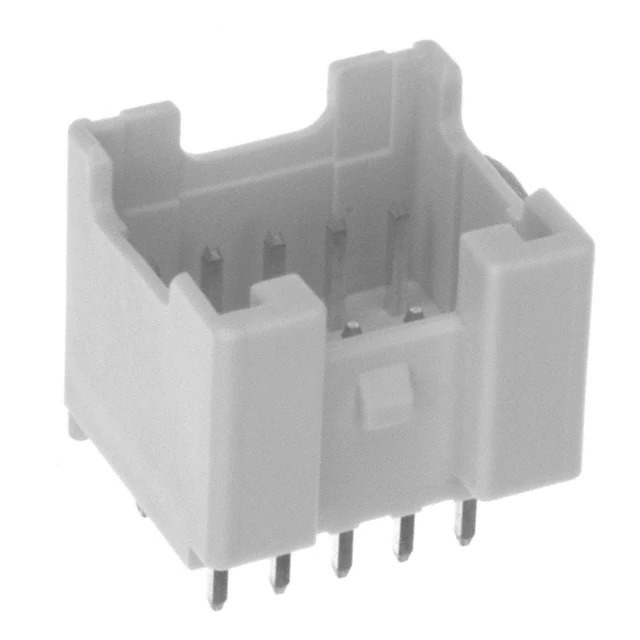

Same model may have multiple batches, images only for reference.
B10B-PNDZS-1(T)(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B10B-PNDZS-1(T)(LF)(SN)

Part No B10B-PNDZS-1(T)(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PND
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.197" (5.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length -
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Ivory
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 12.9mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B10B-PND
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362570-B10B-PNDZS-1(T)(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B10B-PNDZS-1(T)(LF)(SN) CAD Model

Description

The 1362570-B10B-PNDZS-1(T)(LF)(SN) is a male pin header connector from JST Sales America Inc. It is part of the PND series and is designed for through-hole mounting.

  • Temperature Range: -25°C to 85°C
  • Current Rating: 3A
  • Pitch: 0.079" (2.00mm)
  • Number of Positions: 10
  • Number of Rows: 2
  • Row Spacing: 0.197" (5.00mm)
  • Shrouded: 4 Walls
  • Fastening Type: Locking Ramp
  • Termination: Solder
  • Mounting Type: Through Hole
