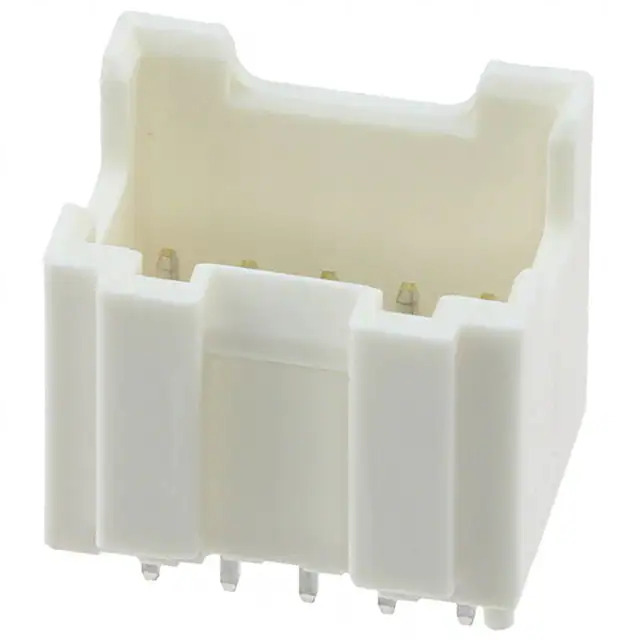

Same model may have multiple batches, images only for reference.

B10B-PADSS-1F(LF)(SN)

Name: B10B-PADSS-1F(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1362498
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B10B-PADSS-1F(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PAD
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	-
Insulation Height	0.402" (10.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	12.4mm
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	B10B-PAD
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362498-B10B-PADSS-1F(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B10B-PADSS-1F(LF)(SN) CAD Model

Alternative Products

Description

The 1362498-B10B-PADSS-1F(LF)(SN) is a rectangular connector header from JST Sales America Inc.

Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Fastening Type: Locking Ramp
Pitch: 0.079" (2.00mm)
Row Spacing: 0.079" (2.00mm)
Shrouded: Yes, 4 Walls
Temperature Range: -25°C to 85°C
Series: PAD
Product Status: Active
Application: Board-to-Cable/Wire
Manufacturer: JST Sales America Inc.
