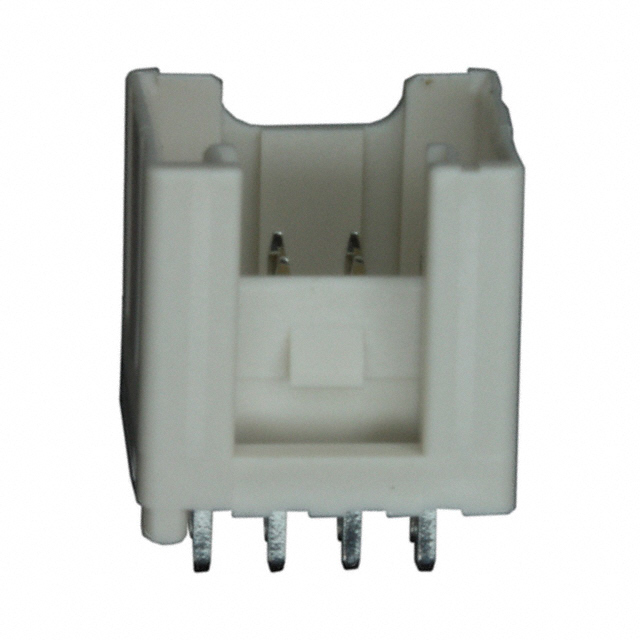

Same model may have multiple batches, images only for reference.

B08B-PUDSS-1

Name: B08B-PUDSS-1
Brand: JST Sales America Inc.
SKU: 1478117
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	B08B-PUDSS-1
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Connector Header Through Hole 8 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	JST Sales America Inc.
Series	PUD
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.122" (3.10mm)
Insulation Height	0.378" (9.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	11mm
Base Product Number	B08B-PUD
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1478117-B08B-PUDSS-1
Ultra Librarian 3D Model	Ultra Librarian B08B-PUDSS-1 CAD Model
