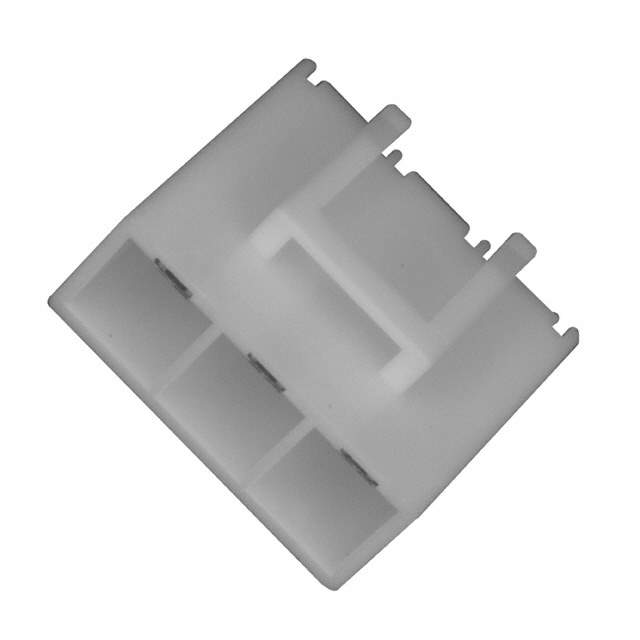

B03P-VL Real Image
Same model may have multiple batches, images only for reference.

B03P-VL

Part No B03P-VL
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 6.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.244" (6.20mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.646" (16.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 90°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 20A
Voltage Rating 600V
Mated Stacking Heights 29.2mm
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807706-B03P-VL
Ultra Librarian 3D Model Ultra Librarian B03P-VL CAD Model

Description

The 807706-B03P-VL is a header connector from JST Sales America Inc.

  • Mounting Style: Through-hole
  • Positions: 3
  • Contact Type: Male Pin
  • Contact Material: Copper Alloy
  • Voltage Rating: 600V
  • Mated Stacking Heights: 29.2mm
  • Material Flammability Rating: UL94 V-0
  • Applications: Board to Cable/Wire
  • Pitch-Mating: 0.244 inches (6.20mm)
  • Contact Finish (Mating/Post): Tin
  • Shrouding: 4 Walls
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Contact Length (Post): 0.142 inches (3.60mm)
  • Insulation Height: 0.646 inches (16.40mm)
  • Contact Shape: Square
  • Operating Temperature: -25°C to 90°C
  • Packaging: Bulk
  • Fastening Type: Latch Holder
  • Supply/Demand: Balanced
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
  • Current Rating: 20A
