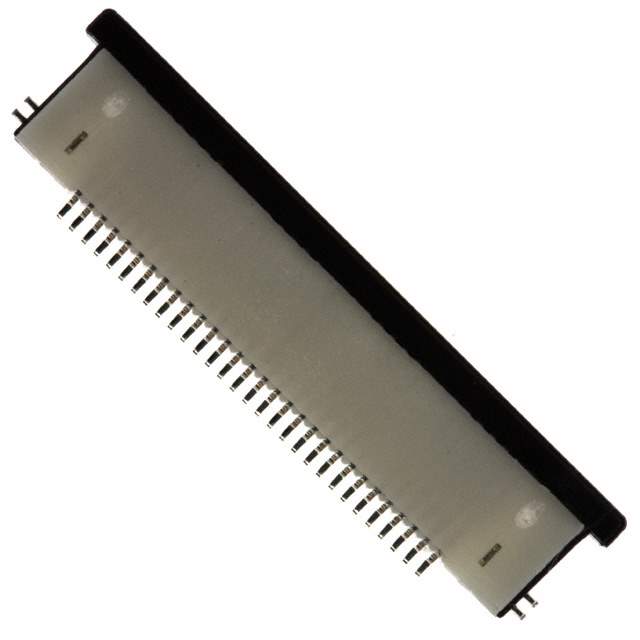

30FLZ-RSM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

30FLZ-RSM2-TB(LF)(SN)

Part No 30FLZ-RSM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 30POS 0.50MM R/A / 30 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JST Sales America Inc.
Series FLZ
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Natural
Actuator Color Black
Base Product Number 30FLZ-RS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 455-1984-6,455-1984-2,455-1984-1,30FLZRSM2TBLFSN
Standard Package 2,800
Win Source Part Number 982354-30FLZ-RSM2-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 30FLZ-RSM2-TB(LF)(SN) CAD Model

Description

The 982354-30FLZ-RSM2-TB(LF)(SN) is a 30-position FFC/FPC connector with a pitch of 0.020" (0.50mm) from JST Sales America Inc.

  • Positions: 30
  • Pitch: 0.020" (0.50mm)
  • Feature: Zero Insertion Force (ZIF)
  • Termination: Solder Retention
  • Contact Finish: Tin
  • Voltage Rating: 50V
  • Packaging: Tape and Reel
  • Standard Package Quantity: 2,800
  • Height Above Board: 0.079" (2.00mm)
  • Flat Flex Type: FFC/FPC
  • Locking Feature: Slide Lock
  • Cable End Type: Tapered
  • Housing Material: Polyamide (PA6T), Nylon 6T
  • Actuator Material: Polyamide (PA6T), Nylon 6T
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4051
