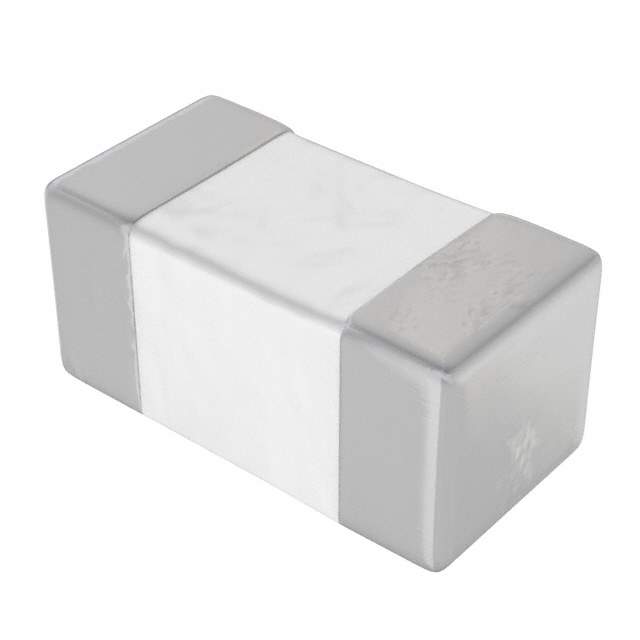

Same model may have multiple batches, images only for reference.

L-07C4N3SV6T

Name: L-07C4N3SV6T
Brand: Johanson Technology Inc.
SKU: 1327363
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	L-07C4N3SV6T
Manufacturer	Johanson Technology Inc.
Catalog	Fixed Inductors
Description	FIXED IND 4.3NH 300MA 240MOHM SM / 4.3 nH Unshielded Multilayer Inductor 300 mA 240mOhm Max 0402 (1005 Metric)
Datasheet	L-07C4N3SV6T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Johanson Technology Inc.
Packaging	Reel - TR
Type	Multilayer
Material - Core	Ceramic
Inductance	4.3 nH
Tolerance	±0.3nH
Current Rating (Amps)	300 mA
Shielding	Unshielded
DC Resistance (DCR)	240mOhm Max
Q @ Freq	8 @ 100MHz
Frequency - Self Resonant	6GHz
Temperature Range - Operating	-55°C ~ 100°C
Inductance Frequency - Test	100 MHz
Mounting	Surface Mount
Case / Package	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.024" (0.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	712-1460-2,712-1460-1,L07C4N3SV6T,712-1460-6
Standard Package	10,000
Win Source Part Number	1327363-L-07C4N3SV6T
Ultra Librarian 3D Model	Ultra Librarian L-07C4N3SV6T CAD Model

Alternative Products

Description

The Johanson Technology Inc. 1327363-L-07C4N3SV6T is a fixed inductor with an inductance of 4.3 nH and a tolerance of ±0.3nH.

Type: Multilayer
Core: Ceramic
Package: 0402 (1005 Metric)
Shielding: Unshielded
Mounting: Surface Mountable
Height: 0.024" (0.60mm)
Frequency Self-Resonant: 6GHz
Q: 8 @ 100MHz
DC Resistance (DCR): 240mOhm Max
Applications: RF
Packaging: Reel
Temperature Range: -55°C to 100°C
RoHS Compliant: Yes
