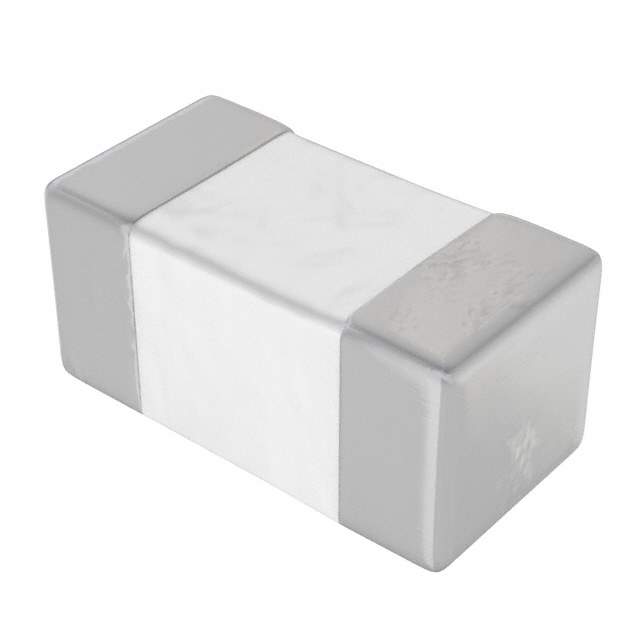

Same model may have multiple batches, images only for reference.

L-07C2N2SV6T

Name: L-07C2N2SV6T
Brand: Johanson Technology Inc.
SKU: 1327361
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	L-07C2N2SV6T
Manufacturer	Johanson Technology Inc.
Catalog	Fixed Inductors
Description	FIXED IND 2.2NH 300MA 160MOHM SM / 2.2 nH Unshielded Multilayer Inductor 300 mA 160mOhm Max 0402 (1005 Metric)
Datasheet	L-07C2N2SV6T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Johanson Technology Inc.
Packaging	Reel - TR
Type	Multilayer
Material - Core	Ceramic
Inductance	2.2 nH
Tolerance	±0.3nH
Current Rating (Amps)	300 mA
Shielding	Unshielded
DC Resistance (DCR)	160mOhm Max
Q @ Freq	8 @ 100MHz
Frequency - Self Resonant	12GHz
Temperature Range - Operating	-55°C ~ 100°C
Inductance Frequency - Test	100 MHz
Mounting	Surface Mount
Case / Package	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.024" (0.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	L07C2N2SV6T,712-1414-6,712-1414-2,712-1414-1
Standard Package	10,000
Win Source Part Number	1327361-L-07C2N2SV6T
Ultra Librarian 3D Model	Ultra Librarian L-07C2N2SV6T CAD Model

Alternative Products

Description

The 1327361-L-07C2N2SV6T is a fixed inductor from Johanson Technology Inc.

Type: Multilayer
Inductance: 2.2 nH
Tolerance: ±0.3nH
Package: 0402 (1005 Metric)
Supplier Device Package: 0402 (1005 Metric)
Standard Package: 10,000
Packaging: Reel - TR
Q @ Freq: 8 @ 100MHz
Frequency - Self-Resonant: 12GHz
Current Rating: 300 mA
DC Resistance (DCR): 160mOhm Max
Ideal for: Inductors, coils, chokes
