Same model may have multiple batches, images only for reference.

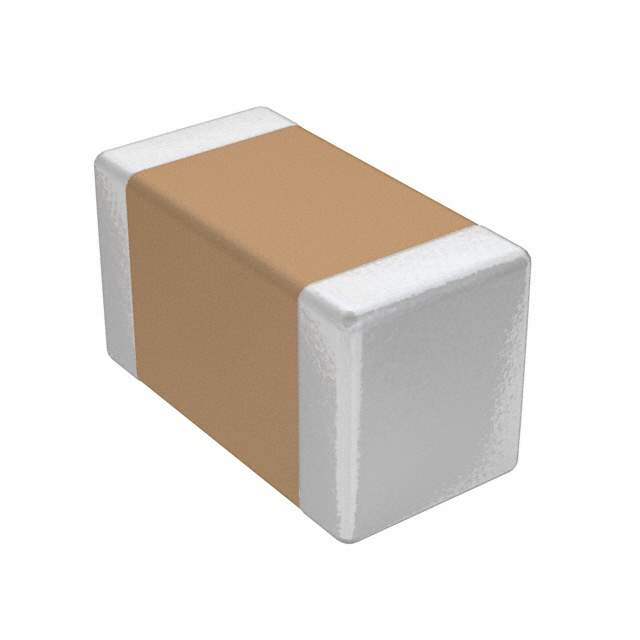

500R14W102KV4T Real Image
Same model may have multiple batches, images only for reference.

500R14W102KV4T

Part No 500R14W102KV4T
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 1000PF 50V X7R 0603 / 1000 pF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)
Datasheet
500R14W102KV4T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Johanson Dielectrics Inc.
Package Tape & Reel
Product Status Obsolete
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Dimension 0.063" L x 0.032" W (1.60mm x 0.81mm)
Thickness (Max) 0.035" (0.89mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 709-1159-1,709-1159-2,709-1159-6
Standard Package 4,000
Win Source Part Number 1156326-500R14W102KV4T
Ultra Librarian 3D Model Ultra Librarian 500R14W102KV4T CAD Model

Description

This ceramic capacitor is a general-purpose electronic component that can be used in various applications.

  • Capacitance: 1000 pF
  • Voltage Rating: 50V
  • Temperature Coefficient: X7R
  • Temperature Range: -55°C to 125°C
  • Package: 0603 (1608 Metric)
  • Tolerance: ±10%
  • Packaging: tape and reel
  • Standard Package: 4,000 pieces
  • Dimensions: 0.063" L x 0.032" W (1.60mm x 0.81mm)
  • Thickness: 0.035" (0.89mm)
  • Manufacturer: Johanson Dielectrics Inc.
  • Status: obsolete
