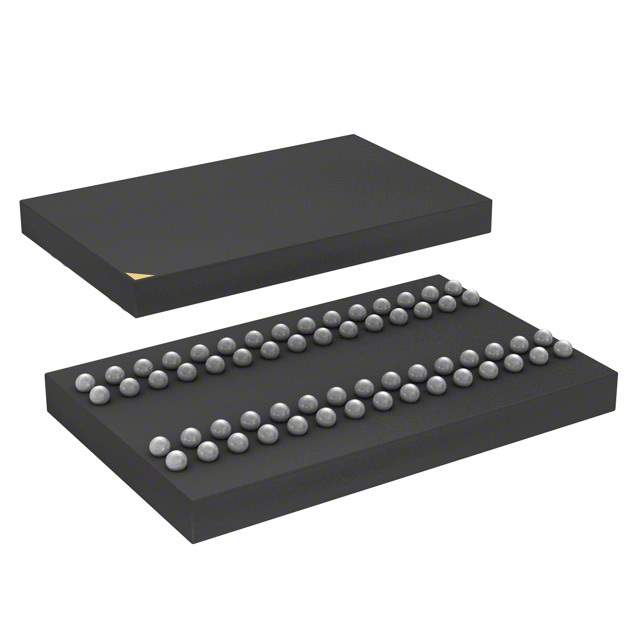

The IS45S16100C1-7BLA1-T is a 16Mbit synchronous dynamic RAM (SDRAM) from ISSI (Integrated Silicon Solution Inc.). This SDRAM chip is designed for applications requiring high-speed data access and storage, such as embedded systems, networking equipment, and graphics processing.

Applications:

• Embedded Systems: Used as main memory in various embedded applications.
• Networking Equipment: Found in routers, switches, and other networking devices for buffering and data storage.
• Graphics Cards: Utilized as frame buffer memory in low-end graphics cards.
• Printers: Employed in printer memory for image processing and data storage.
• Industrial Control Systems: Used in industrial automation equipment for real-time data acquisition and processing.

Features:

• 16Mbit Capacity: Provides ample storage for data and program code.
• Synchronous Operation: Enables high-speed data transfer rates.
• Single 3.3V Power Supply: Simplifies power supply design.
• LVTTL Compatible Inputs: Compatible with standard logic levels.
• Lead-Free Package: Complies with environmental regulations.

Benefits:

• High-Speed Performance: Enables fast data access and processing.
• Low Power Consumption: Reduces power consumption in portable and energy-sensitive applications.
• Simplified System Design: Easy to integrate into various electronic systems.
• Reliable Operation: Provides stable and reliable performance.
• Reduced Board Space: Compact package enables smaller and more efficient designs.

Additional Details:

This SDRAM chip operates at a speed of 143 MHz, indicated by -7 in the part number. It is organized as 1M x 16 x 1 banks. It is typically supplied in a TSOP package for surface mounting. The IS45S16100C1-7BLA1-T offers auto refresh and self refresh modes for power saving. Proper decoupling capacitors are recommended near the power supply pins to minimize noise and ensure stable operation.
