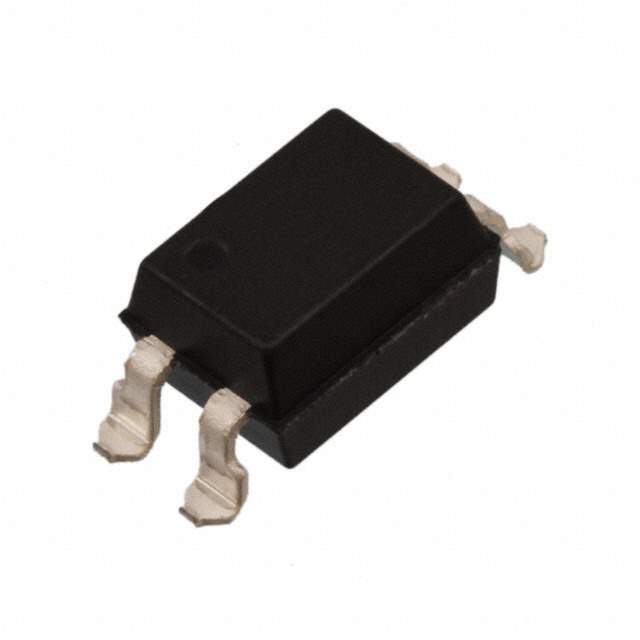

The ISP817XA is a high-performance single channel transistor output optocoupler manufactured by Isocom Components 2004 LTD. It is designed for electrical isolation in various applications, providing a safe and reliable method to interface circuits with different voltage levels or grounds. This optocoupler features a high current transfer ratio (CTR), low saturation voltage, and fast switching speeds.

Applications

• Power supplies: Switching power supplies, AC/DC converters, and DC/DC converters.
• Industrial control: Programmable logic controllers (PLCs), motor drives, and process control systems.
• Data communication: RS-232, RS-485, and other communication interfaces.
• Instrumentation: Data acquisition systems, test equipment, and measurement devices.
• Consumer electronics: Home appliances and audio/visual equipment.

Features

• High current transfer ratio (CTR): Provides efficient signal transfer with minimal input current.
• Low saturation voltage: Ensures low power dissipation in the output transistor.
• High isolation voltage: Provides robust electrical isolation between input and output circuits.
• Fast switching speeds: Enables high-speed data transmission and control.
• Compact package: Available in a small DIP-4 package for space-constrained applications.
• RoHS compliant: Complies with Restriction of Hazardous Substances directive.
• High input-output isolation voltage of 5000 VRMS

Benefits

• Electrical isolation: Protects sensitive circuits from high voltages and noise.
• Improved safety: Enhances safety by isolating potentially hazardous voltages.
• Reliable signal transfer: Provides reliable signal transmission with minimal distortion.
• Reduced power consumption: Low saturation voltage minimizes power dissipation.
• Compact design: Small package size allows for integration into space-constrained applications.

Additional Details

The ISP817XA optocoupler consists of an infrared emitting diode (IRED) and a silicon NPN phototransistor. When current flows through the IRED, it emits light that activates the phototransistor, allowing current to flow through the output circuit. The CTR is specified as a percentage, indicating the ratio of output current to input current. The isolation voltage is the maximum voltage that the optocoupler can withstand between the input and output circuits. The ISP817XA is available in various lead configurations and is suitable for both through-hole and surface mount applications. It is a cost-effective solution for providing electrical isolation in a wide range of applications.
