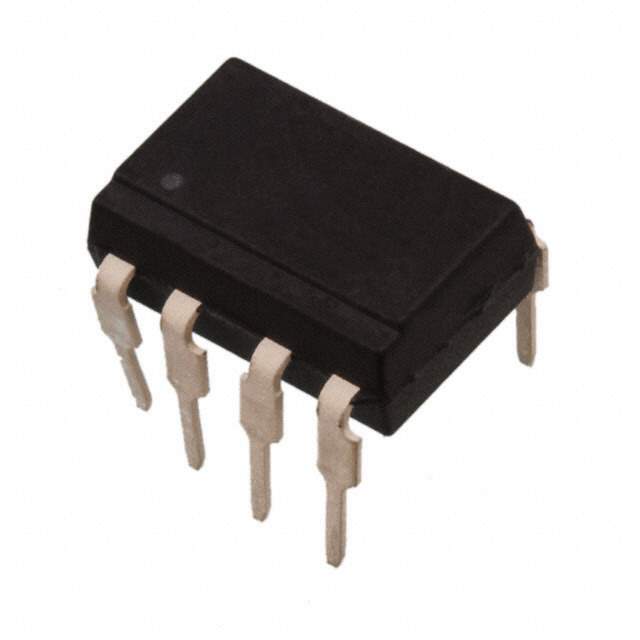

ICPL3120 Real Image
Same model may have multiple batches, images only for reference.

ICPL3120

Part No ICPL3120
Manufacturer Isocom Components 2004 LTD
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV GATE DRIVER 8DIP
Datasheet
ICPL3120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Isocom Components 2004 LTD
Packaging Tube/Rail
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Pulse Width Distortion (Max) 100ns
Rise and Fall Time 100ns, 100ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Forward Voltage 1.37V
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -40°C to 110°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 1044672-ICPL3120
Popularity Medium
Supply and Demand Status Balance
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian ICPL3120 CAD Model

Description

The ICPL3120 is an isolator electronic component manufactured by Isocom Components 2004 LTD.

  • Manufacturer: Isocom Components 2004 LTD
  • Isolation Voltage: 5000Vrms
  • Common Mode Transient Immunity (min): 25kV/μs
  • Forward Voltage: 1.37V
  • Supply and Demand Status: Balanced
  • Win Source Part Number: 1044672-ICPL3120
