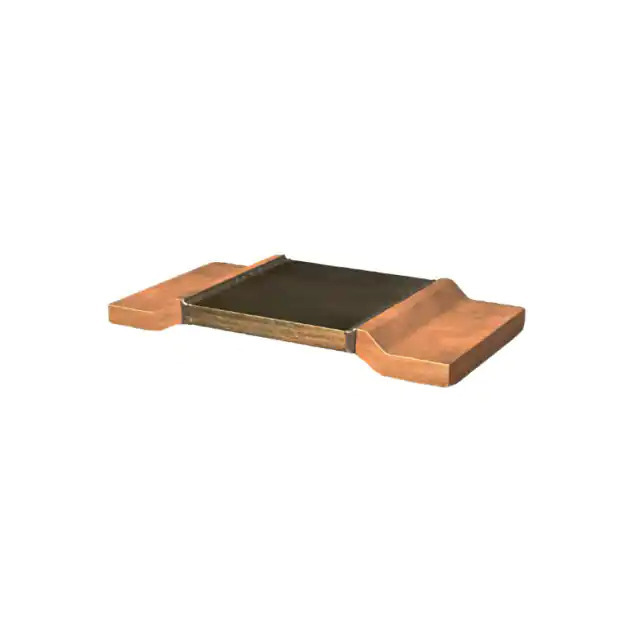

BVT-I-R003-1.0 Isabellen
Same model may have multiple batches, images only for reference.

BVT-I-R003-1.0

Part No BVT-I-R003-1.0
Manufacturer Isabellen
Catalog Chip Resistor - Surface Mount
Description RESISTOR - ISA-WELD SHUNT, 0.003
Datasheet
BVT-I-R003-1.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Isabellenhuette USA
Series BVT
Package Tape & Reel
Product Status Active
Resistance 3 mOhms
Tolerance ±1%
Power (Watts) 6W
Composition -
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.119" W (6.35mm x 3.02mm)
Height - Seated (Max) 0.034" (0.86mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1375359-BVT-I-R003-1.0
Ultra Librarian 3D Model Ultra Librarian BVT-I-R003-1.0 CAD Model

Description

The BVT-I-R003-1.0 is a chip resistor manufactured by Isabellenhuette USA.

  • Series: BVT
  • Mounting Type: Surface Mount
  • Package / Case: 2512 (6432 Metric)
  • Packaging: Tape and Reel (TR)
  • Resistance: 3 mOhms
  • Tolerance: ±1%
  • Operating Temperature: -55°C to 170°C
  • Automotive: AEC-Q200
  • Features: Current Sense, Moisture Resistant
  • Size / Dimension: 0.250" L x 0.119" W (6.35mm x 3.02mm)
  • Height - Seated (Max): 0.034" (0.86mm)
