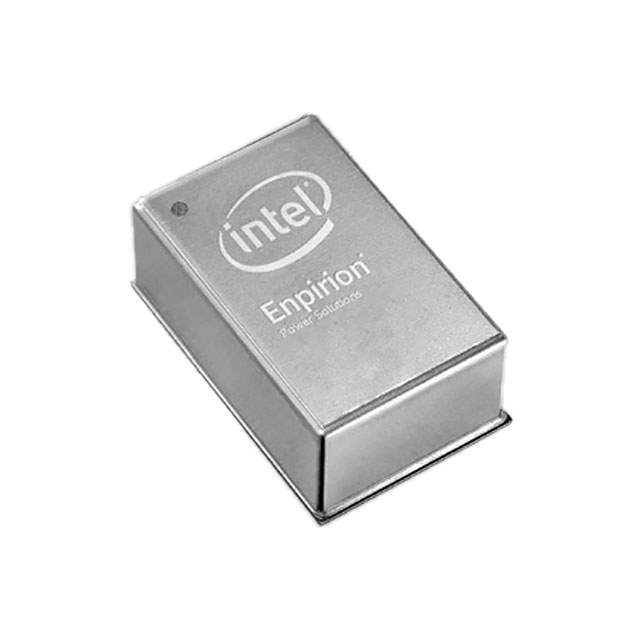

Same model may have multiple batches, images only for reference.

EM2120H01QI

Name: EM2120H01QI
Brand: Intel
SKU: 1237407
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EM2120H01QI
Manufacturer	Intel
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 1.325-5V / Non-Isolated PoL Module, Digital DC DC Converter 1 Output 1.325 ~ 5V 20A 4.5V - 16V Input
Datasheet	EM2120H01QI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Intel
Series	Enpirion® 2120
Package	Tray
Product Status	Obsolete
Type	Non-Isolated PoL Module, Digital
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	16V
Voltage - Output 1	1.325 ~ 5V
Current - Output (Max)	20A
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95%
Mounting	SMD (SMT)
Package / Case	100-PowerBQFN Module
Dimension	0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package	100-QFN (17x11)
Base Product Number	EM2120
Other Names	544-3366,966238
Standard Package	112
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237407-EM2120H01QI
Ultra Librarian 3D Model	Ultra Librarian EM2120H01QI CAD Model

Alternative Products

Description

The Enpirion® 2120 series is a non-isolated PoL module, digital DC-DC converter designed for ITE (Commercial) applications.

Model: 1237407-EM2120H01QI
Maximum Output Current: 20A
Input Voltage Range: 4.5V to 16V
Voltage Output: 1.325V to 5V
Efficiency: 95%
Packaging: Tray
Units per Standard Package: 112
Package: 100-PowerBQFN module
Dimension: 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Mounting Technology: Surface Mount Technology (SMT)
Temperature Range: -40°C to 85°C
Supplier: Intel
HTSUS Code: 8504.40.9580
Classification: EAR99
