Same model may have multiple batches, images only for reference.

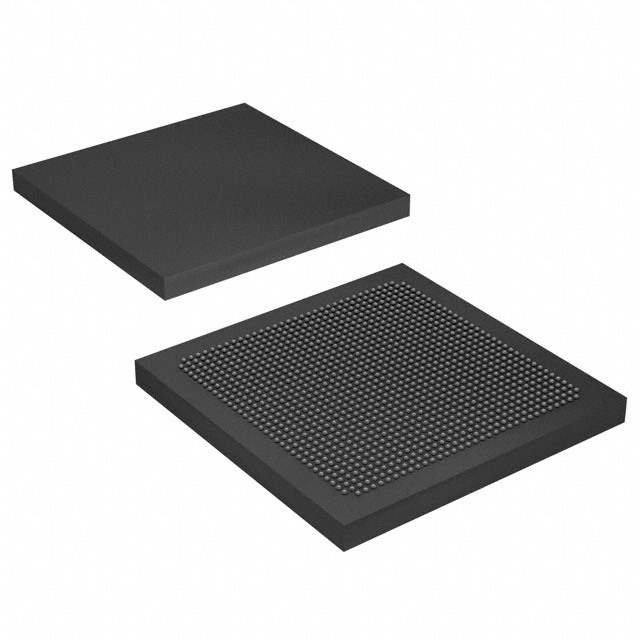

10AS066H3F34E2LG Real Image
Same model may have multiple batches, images only for reference.

10AS066H3F34E2LG

Part No 10AS066H3F34E2LG
Manufacturer Intel
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 1.5GHZ 1152FBGA / Dual ARM? Cortex?-A9 MPCore? with CoreSight? System On Chip (SOC) IC Arria 10 SX FPGA - 660K Logic Elements 1.5GHz 1152-FBGA, FC (35x35)
Datasheet
10AS066H3F34E2LG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr Intel
Series Arria 10 SX
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA, POR, WDT
Connectivity EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 1.5GHz
Primary Attributes FPGA - 660K Logic Elements
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA, FC (35x35)
Number of I/O 492
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 852698-10AS066H3F34E2LG
Ultra Librarian 3D Model Ultra Librarian 10AS066H3F34E2LG CAD Model

Description

The Intel 852698-10AS066H3F34E2LG is a high-performance System-on-Chip (SoC) from the Arria 10 SX series.

  • Processors: dual ARM Cortex-A9 MPCore processors with CoreSight technology
  • Processor Speed: 1.5GHz
  • Package: tray
  • Standard Package Quantity: 1 piece
  • Connectivity Options: EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG
  • Peripherals: DMA, POR, and WDT
  • I/O Pins: 492
  • RAM Size: 256KB
  • Mounting Type: surface mountable
  • Package: 1152-BBGA
  • Temperature Range: 0°C to 100°C
