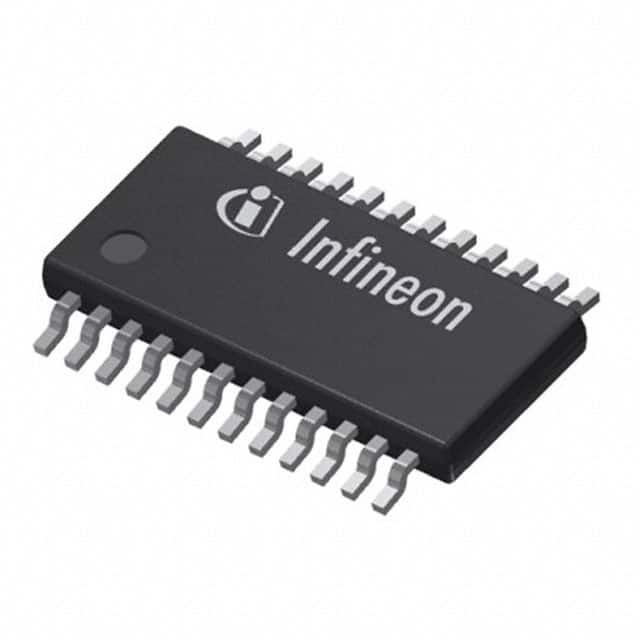

TLE75242ESDXUMA1

Name: TLE75242ESDXUMA1
Brand: Infineon Technologies
SKU: 1008964
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLE75242ESDXUMA1
Manufacturer	Infineon Technologies
Catalog	PMIC - Power Distribution Switches, Load Drivers
Description	IC PWR DRVR N-CHAN 1:8 TSDSO-24 / Power Switch/Driver 1:8 N-Channel 330mA PG-TSDSO-24-21
Datasheet	TLE75242ESDXUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr	Infineon Technologies
Series	Automotive, AEC-Q100
Package	Tape & Reel (TR)
Switch Type	Relay, Solenoid Driver
Number of Outputs	8
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	3V ~ 28V
Supply Voltage - Operating	3V ~ 5.5V
Current - Output (Max)	330mA
Rds On (Typ)	1Ohm
Features	Slew Rate Controlled
Fault Protection	Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-TSDSO-24-21
Package / Case	24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number	TLE75242
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	SP001635026,TLE75242-ESD,TLE75242-ESD-ND
Standard Package	3,000
Win Source Part Number	1008964-TLE75242ESDXUMA1
Ultra Librarian 3D Model	Ultra Librarian TLE75242ESDXUMA1 CAD Model

Description

The TLE75242ESDXUMA1 is a Slew Rate Controlled power distribution switch designed for use in automotive applications.

Switch Type: N-Channel
Number of Outputs: 8
Output Configuration: High Side or Low Side
Input Type: SPI interface
Package: 24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Voltage - Load: 3V ~ 28V
Output Current (Max): 330mA
Fault Protection: Open Load Detect, Over Temperature, and Over Voltage
Rds On (Typ): 1Ohm
Operating Temperature: -40°C ~ 150°C (TJ)
Operating Supply Voltage: 3V ~ 5.5V
