Same model may have multiple batches, images only for reference.

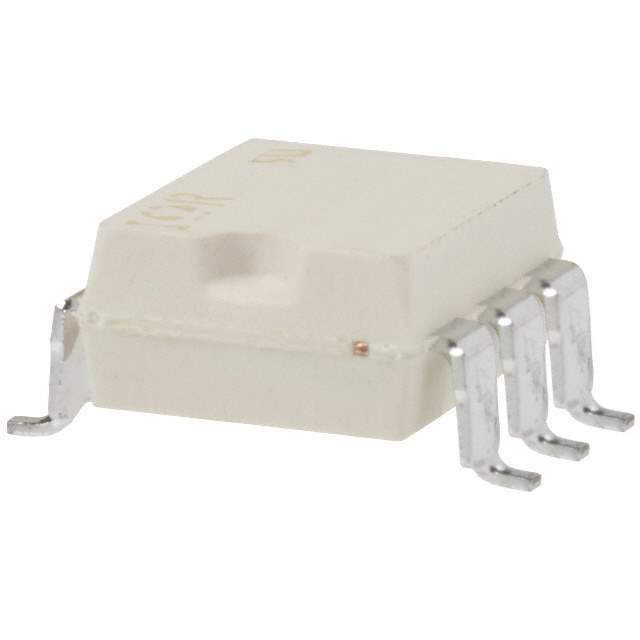

PVN012S Real Image
Same model may have multiple batches, images only for reference.

PVN012S

Part No PVN012S
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2.5A 0-20V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Tube
Status Obsolete
Mounting Style SMD
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Parts Input Voltage (V) 1.2VDC
Load Voltage (V) 0V ~ 20V
Load Current 2.5A
On-State Resistance (Maximum) 100 mOhms
Termination Style Gull Wing
Manufacturer Package 6-SMD
Supplier Device Package 6-SMT
Manufacturer Pack Quantity 50
MSL Level 4 (72 Hours)
Win Source Part Number 711734-PVN012S
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVN012S CAD Model

Description

Infineon Technologies PVN012S is a SPST-NO (1 Form A) relay with a load current of 2.5A.

  • Termination Style: Gull-wing
  • Mounting: SMD
  • Output Type: AC, DC
  • Load Voltage: 0V ~ 20V
  • On-State Resistance (Maximum): 100 mOhms
  • Package: 6-SMT
  • Manufacturer Package: 6-SMD
  • Status: Obsolete
  • Manufacturer Pack Quantity: 50
  • MSL Level: 4 (72 hours)
  • Parts Input Voltage (V): 1.2VDC
  • Popularity: Low
  • Supply and Demand Status: Balanced
