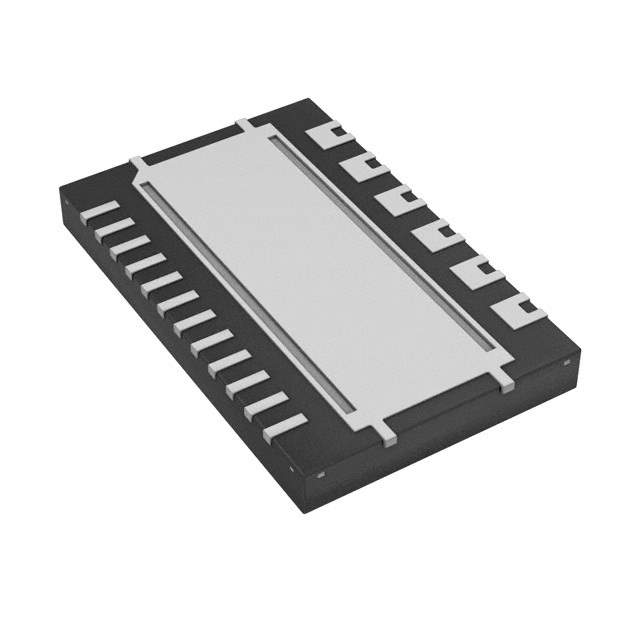

BTS54040LBAAUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTS54040LBAAUMA1

Part No BTS54040LBAAUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 TSON-24 / Power Switch/Driver 1:1 N-Channel PG-TSON-24-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 4
Output Configuration High Side
Output Type N-Channel
Interface SPI
Voltage - Load 5.5V ~ 28V
Supply Voltage - Operating 3.8V ~ 5.5V
Rds On (Typ) 39mOhm
Features Slew Rate Controlled
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TSON-24-3
Package / Case 24-PowerTDFN
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP000887550,INFINFBTS54040LBAAUMA1,BTS54040LBAAUMA1DKR,BTS54040LBAAUMA1TR,BTS54040-LBA,BTS54040LBAAUMA1CT,2156-BTS54040LBAAUMA1-ITTR
Standard Package 2,500
Win Source Part Number 1154457-BTS54040LBAAUMA1
Ultra Librarian 3D Model Ultra Librarian BTS54040LBAAUMA1 CAD Model

Description

The BTS54040LBAAUMA1 is a power distribution switch IC from Infineon Technologies, designed for use in automotive applications.

  • Voltage Load: 5.5V to 28V
  • Outputs: Four
  • Switch Type: N-channel high-side
  • Protection: Fixed current limiting, over temperature, over voltage, and UVLO
  • Typical On-Resistance (Rds): 39mOhm
  • Supply Voltage: 3.8V to 5.5V
  • Package: 24-PowerTDFN
  • Operating Temperature Range: -40°C to 150°C
  • ECCN: EAR99
  • MSL Level: 3 (168 hours)
  • RoHS Compliant: No
  • Alternative Part Cross-Reference: SP000887550
