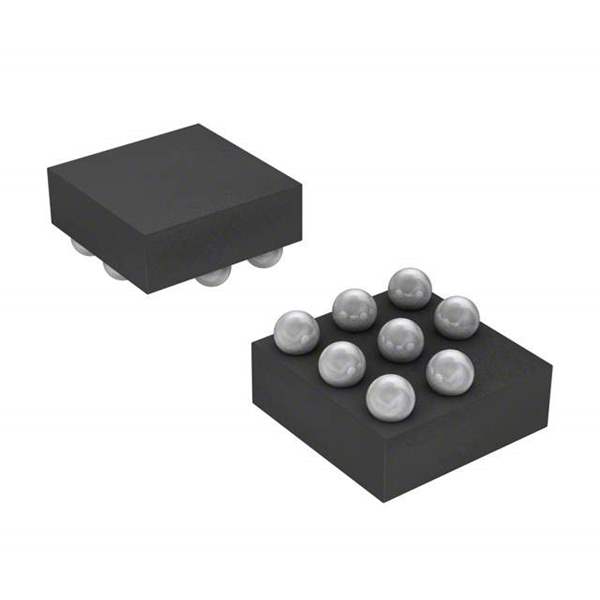

BGF106C E6328

Part No BGF106C E6328
Manufacturer Infineon Technologies
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 290MHZ ESD SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC
Number of Channels 3
Center / Cutoff Frequency 290MHz (Cutoff)
Attenuation Value 16.9dB @ 800MHz to 4GHz
Resistance - Channel (Ohms) 47, 100
Values R = 47 Ohms, 100 Ohms, C = 16.5pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5.5V
Mounting SMD (SMT)
Dimension 0.047" L x 0.047" W (1.20mm x 1.20mm)
Height 0.026" (0.65mm)
Win Source Part Number 201209-BGF106C E6328
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BGF106C E6328 CAD Model

Description

BGF106C E6328

The BGF106C E6328 is a powerful component engineered to manage high-frequency applications effectively. Its architecture supports efficient functioning across various platforms, especially in demanding technical environments.

  • Applications:
    • Aerospace communications
    • High-performance computing systems
    • Data transmission networks
  • Features and Benefits:
    • Superior frequency handling
    • Advanced noise reduction capabilities
    • Optimized for high-data throughput

    Additional highlights include a robust design that withstands rigorous operational stress, making the BGF106C E6328 suitable for cutting-edge technological applications.
