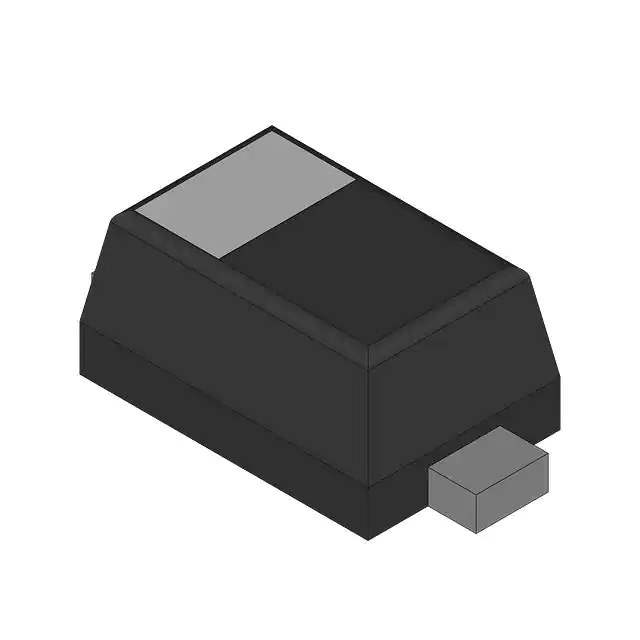

BAS52-02VH6327 Infineon Technologies BAS52-02VH6327 Real Image
Same model may have multiple batches, images only for reference.
BAS52-02VH6327 Infineon Technologies BAS52-02VH6327 Real Image
BAS52-02VH6327 Infineon Technologies BAS52-02VH6327 Real Image
Same model may have multiple batches, images only for reference.

BAS52-02VH6327

Part No BAS52-02VH6327
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTT 45V 750MA SC79-2-1
Datasheet
BAS52-02VH6327 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Infineon Technologies
Package Bulk
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 750mA
Voltage - Forward (Vf) (Max) @ If 600 mV @ 200 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 45 V
Capacitance @ Vr, F 5pF @ 10V, 1MHz
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package PG-SC79-2-1
Operating Temperature - Junction 150°C
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 72372-BAS52-02VH6327
Ultra Librarian 3D Model Ultra Librarian BAS52-02VH6327 CAD Model

Description

BAS52-02VH6327 Schottky Diode

The BAS52-02VH6327 is tailored for precision, ensuring minimal voltage drop and quick reaction times in demanding electronic environments.

Features and Benefits

  • Extremely Low Forward Voltage: Improves circuit efficiency.
  • Quick Recovery Time: Enhances high-frequency response.
  • Miniature SOD-323 Package: Ideal for space-constrained applications.

Applications

  • RF Front-End Circuits
  • Switch-Mode Power Supplies
  • Display Systems
  • Voltage Clamping Solutions

This diode is engineered to provide developers with the flexibility and efficiency needed in various electronic designs, enhancing both functionality and space management.
