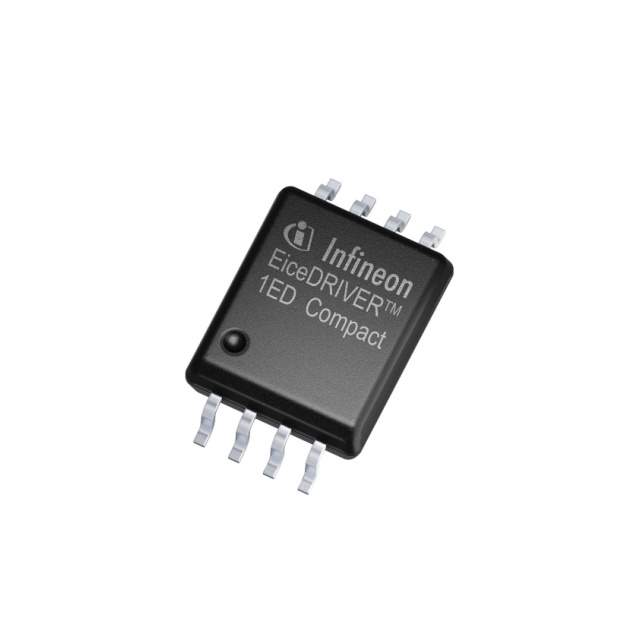

1ED3120MC12HXUMA1 Real Image
Same model may have multiple batches, images only for reference.

1ED3120MC12HXUMA1

Part No 1ED3120MC12HXUMA1
Manufacturer Infineon Technologies
Catalog Isolators - Gate Drivers
Description EICEDRIVER X3 COMPACT PG-DSO-8 / 5.5A Gate Driver Capacitive Coupling 8000Vpk 1 Channel PG-DSO-8-66
Datasheet
1ED3120MC12HXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 8000Vpk
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 280ns, 280ns
Rise / Fall Time (Typ) 30ns, 30ns (Max)
Current - Output High, Low 5.5A, 5.5A
Current - Peak Output 5.5A
Voltage - Output Supply 10V ~ 35V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package PG-DSO-8-66
Approval Agency UL, VDE
Base Product Number 1ED3120
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001878178,448-1ED3120MC12HXUMA1DKR,448-1ED3120MC12HXUMA1CT,448-1ED3120MC12HXUMA1TR
Standard Package 1,000
Win Source Part Number 1230119-1ED3120MC12HXUMA1
Ultra Librarian 3D Model Ultra Librarian 1ED3120MC12HXUMA1 CAD Model

Description

The 1230119-1ED3120MC12HXUMA1 is an EiceDriver™ isolator that belongs to the Isolators - Gate Drivers category.

  • Technology: Capacitive Coupling
  • Voltage Isolation: 8000Vpk
  • Package: 8-SOIC (0.295", 7.50mm Width)
  • Operating Temperature: -40°C to 125°C
  • Common Mode Transient Immunity: 200kV/µs
  • Propagation Delay tpLH / tpHL (Max): 280ns, 280ns
  • Current Output High, Low: 5.5A, 5.5A
  • Pulse Width Distortion (Max): -
  • Peak Output Current: 5.5A
  • Rise / Fall Time (Typ): 30ns, 30ns (Max)
