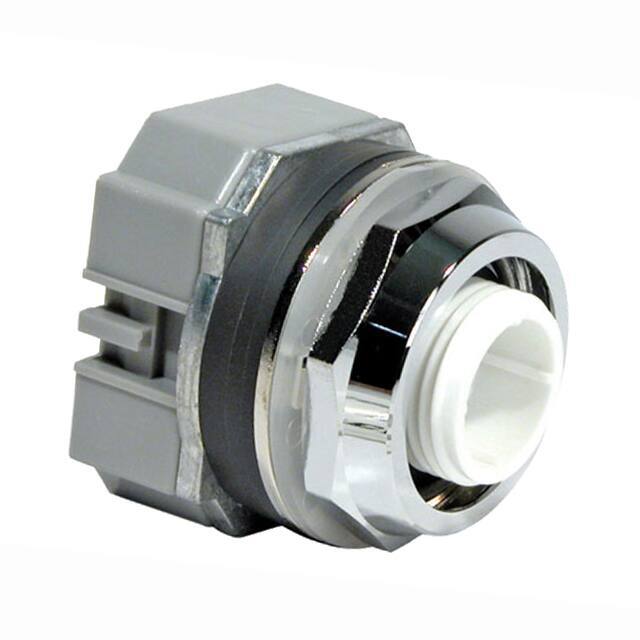

Same model may have multiple batches, images only for reference.
AYD-3100
Same model may have multiple batches, images only for reference.

AYD-3100

Part No AYD-3100
Manufacturer IDEC
Catalog Configurable Switch Components - Body
Description CONFIG SW BODY E-STOP NON-ILLUM
Datasheet
AYD-3100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr IDEC
Series TWTD
Package Bulk
Product Status Obsolete
Requires Contact Block(s), Lens
Type Maintained
Illumination Non-Illuminated
Actuator Type E-Stop, Round
(Select First, Then Apply Filters) Compatible Series IDEC, TWTD
Panel Cutout Dimensions 30.5mm (Round)
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 904158-AYD-3100
Ultra Librarian 3D Model Ultra Librarian AYD-3100 CAD Model

Description

The TWTD series Maintained Switch is a configurable switch component designed for use in various electronic applications.

  • Actuator Type: Round E-Stop
  • Illumination: Non-Illuminated
  • Requirements: Contact block(s) and lens needed
  • Series Compatibility: IDEC TWTD series
  • Manufacturer: IDEC
  • Panel Cutout: 30.5mm (round)
  • Package: Bulk
  • Quantity per package: 1 piece
  • Product Status: Obsolete
  • ECCN: EAR99
  • HTSUS code: 8538.90.8180
