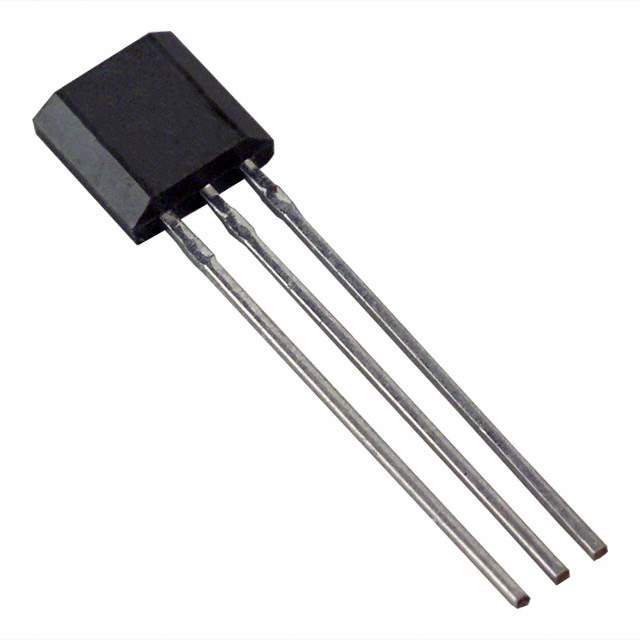

SS40F Real Image
Same model may have multiple batches, images only for reference.

SS40F

Part No SS40F
Manufacturer Honeywell
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH BIPOLAR 3SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Function Bipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 17mT Trip, -17mT Release
Test Condition -40°C ~ 125°C
Supply Voltage (V) 4.5V ~ 24V
Current - Supply (Maximum) 10mA
Current - Output (Maximum) 20mA
Output Type Open Collector
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 3-SIP
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 802937-SS40F
Ultra Librarian 3D Model Ultra Librarian SS40F CAD Model

Description

The Honeywell Sensing and Productivity Solutions 802937-SS40F switch from Honeywell Sensing and Productivity Solutions is a bipolar switch designed using hall effect technology.

  • Output Type: Open collector
  • Polarization: South pole
  • Sensing Range: 17mT trip and -17mT release
  • Current Output: 20mA
  • Operating Temperature Range: -40°C to 125°C
  • Supply Voltage Range: 4.5V to 24V
  • Package: 3-SIP
  • Maximum Supply Current: 10mA
