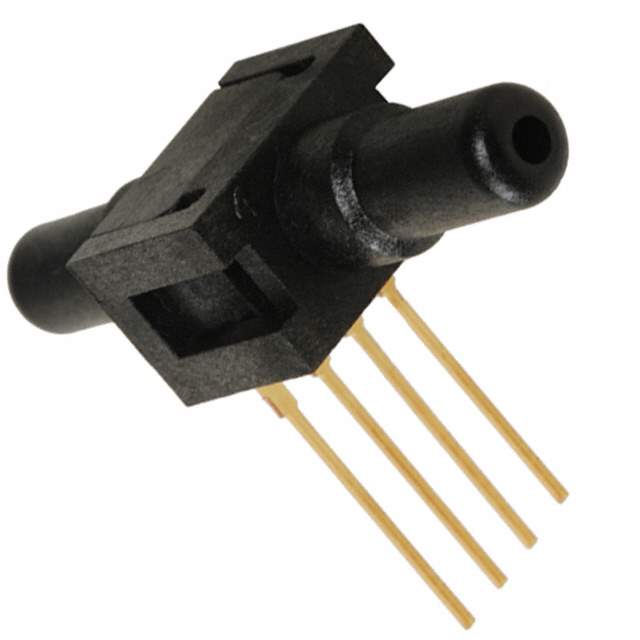

26PCAFA6D Real Image
Same model may have multiple batches, images only for reference.

26PCAFA6D

Part No 26PCAFA6D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description 26PC SERIES CHART 4 | SENSOR 1PSI DIFFERENTIAL GAUGE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Applications Board Mount
Pressure Type Differential
Operating Pressure ±1PSI (±6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 16.7 mV (10V)
Accuracy ±0.5%
Supply Voltage (V) 2.5V ~ 16V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 4-SIP Module
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1123422-26PCAFA6D
Manufacturer Homepage www.inertialsensor.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 26PCAFA6D CAD Model

Description

The Honeywell 26PCAFA6D is a differential pressure sensor.

  • Pressure Range: ±1PSI (±6.89kPa)
  • Maximum Pressure: ±20PSI (±137.9kPa)
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV ~ 16.7 mV (10V)
  • Accuracy: ±0.5%
  • Mounting Style: Board Mount
  • Package: 4-SIP Module
  • Supply Voltage Range: 2.5V ~ 16V
