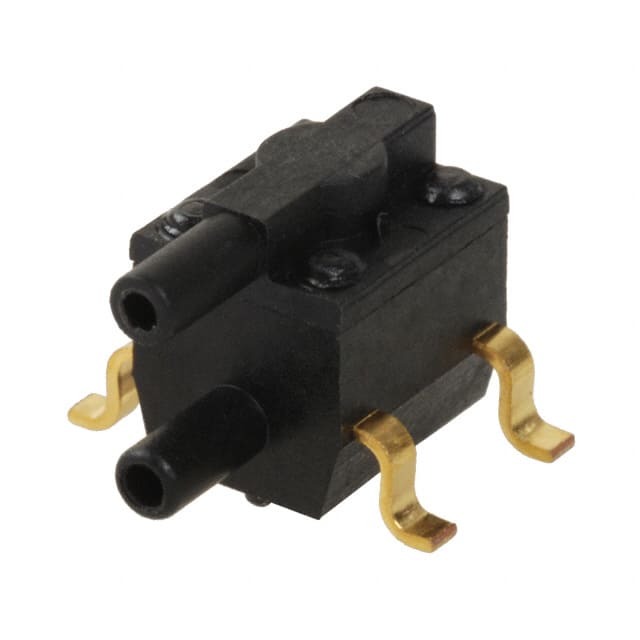

26PC01SMT
Same model may have multiple batches, images only for reference.

26PC01SMT

Part No 26PC01SMT
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 1PSIC 0.07" .0167V
Datasheet
26PC01SMT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC SMT
Package Tube
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±1PSI (±6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 16.7 mV (10V)
Accuracy ±1.75%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.07" (1.88mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style Gull Wing
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD Module
Base Product Number 26PC01
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 854848-26PC01SMT
Ultra Librarian 3D Model Ultra Librarian 26PC01SMT CAD Model

Description

The Honeywell Pressure Sensor 854848-26PC01SMT is a high-performance sensor designed for measuring pressure in various applications. It is manufactured by Honeywell.

  • Category: Sensors, Transducers - Pressure Sensors, Transducers
  • Series: 26PC SMT
  • Termination Style: Gull Wing
  • Mounting Type: Board Mount
  • Package: Tube
  • Standard Package: 25 Pieces
  • Output Type: Wheatstone Bridge
  • Output Range: 0mV to 16.7mV (10V)
  • Accuracy: ±1.75%
  • Pressure Type: Compound
  • Operating Pressure Range: ±1PSI (±6.89kPa)
  • Port Size: 0.07" (1.88mm) Tube
  • Port Style: Barbless
  • Maximum Pressure Range: ±20PSI (±137.9kPa)
  • Voltage Supply: 2.5V to 16V
  • Mounting: Surface Mount
  • Package/Case: 4-SMD Module
  • Operating Temperature: -40°C to 85°C
  • MSL: 1 (Unlimited)
  • HTSUS Code: 9026.20.4000
  • Status: Active
