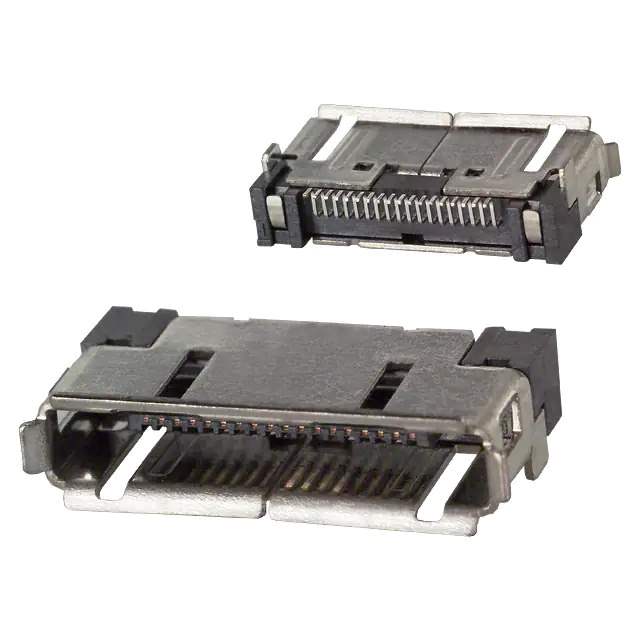

Same model may have multiple batches, images only for reference.

ST60-18P(30)

Name: ST60-18P(30)
Brand: Hirose Electric Co Ltd
SKU: 849171
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ST60-18P(30)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 18P 0.02 GOLD EDGE MNT
Datasheet	ST60-18P(30) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Board Edge, Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 80°C
Contact Finish - Post	Gold
Features	Board Guide, Shielded
Current Rating (Amps)	0.5A
Voltage Rating	100VAC
Applications	General Purpose, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Base Product Number	ST60
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849171-ST60-18P(30)
Ultra Librarian 3D Model	Ultra Librarian ST60-18P(30) CAD Model

Alternative Products

Description

The ST60-18P(30) is a female socket header connector from Hirose Electric Co Ltd.

Series: ST
Positions: 18
Rows: Single row
Features: board guide, shielded
Connector Type: receptacle
Contact Gender: non-gendered
Termination: solder
Fastening Type: latch holder
Contact Material: copper alloy
Voltage Rating: 100VAC
Insulation Material: liquid crystal polymer (LCP)
Insulation Color: black
Application: general purpose, telecommunications
Connection Type: board-to-cable/wire
Package: tape & reel
Mating Pitch: 0.020" (0.50mm)
Contact Finish: gold
Operating Temperature: -30°C to 80°C
Product Status: active
Standard Package: 1,500 pcs
