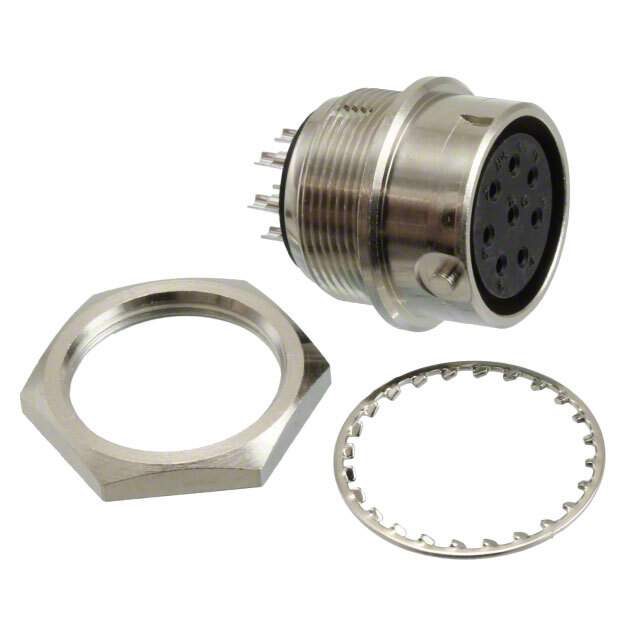

RM15QRD-8S(71) Real Image
Same model may have multiple batches, images only for reference.

RM15QRD-8S(71)

Part No RM15QRD-8S(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 8P SOLDER CUP / 8 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series RM
Package Bulk
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Number of Positions 8
Shell Size - Insert 15
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Push-Twist
Orientation Keyed
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Voltage Rating 500VAC, 700VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 196.9µin (5.00µm)
Insert Material Diallyl Phthalate (DAP)
Base Product Number RM15QR
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1340462-RM15QRD-8S(71)
Ultra Librarian 3D Model Ultra Librarian RM15QRD-8S(71) CAD Model

Description

The Hirose Electric Co Ltd 1340462-RM15QRD-8S(71) is a circular connector assembly with a receptacle, female sockets connector type and push-twist fastening type. 1340462-RM15QRD-8S(71) is manufactured by Hirose Electric Co Ltd.

  • Connector Type: Receptacle, Female Sockets
  • Fastening Type: Push-Twist
  • Number of Positions: 8
  • Shell Size: 15
  • Orientation: Keyed
  • Contact Material: Copper Alloy, Silver Finish
  • Shell Material: Brass, Nickel Finish
  • Termination: Solder Cup
  • Voltage Rating: 500VAC and 700VDC
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Mounting Feature: Bulkhead - Rear Side Nut
  • Ideal for: Industrial Equipment, Medical Equipment, and Communication Devices
