Same model may have multiple batches, images only for reference.

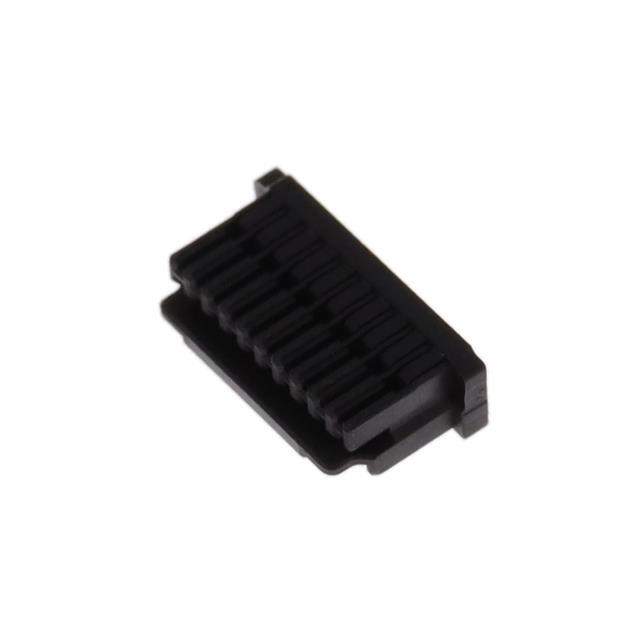

KW30-10P-1C(800) Real Image
Same model may have multiple batches, images only for reference.

KW30-10P-1C(800)

Part No KW30-10P-1C(800)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RECEPT 1.0MM 10POS / 10 Rectangular Connectors - Housings Plug Black 0.039" (1.00mm)
Datasheet
KW30-10P-1C(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Hirose Electric Co Ltd
Series KW30
Package Bag
Connector Type Plug
Contact Type Female Socket
Number of Positions 10
Pitch 0.039" (1.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color Black
Note Contacts Not Included
MSL Level 1 (Unlimited)
Other Names 26-KW30-10P-1C(800)
Standard Package 1,000
Win Source Part Number 1183352-KW30-10P-1C(800)
Ultra Librarian 3D Model Ultra Librarian KW30-10P-1C(800) CAD Model

Description

The KW30-10P-1C(800) is a rectangular connector housing manufactured by Hirose Electric Co Ltd.

  • Pitch: 0.039" (1.00mm)
  • Color: Black
  • Connector Type: Plug
  • Contact Type: Female Socket
  • Positions: 10
  • Rows: 1
  • Fastening Type: Latch Holder
  • Mounting: Free Hanging (In-Line)
  • Contacts: Not Included
  • Standard Package: 1,000
