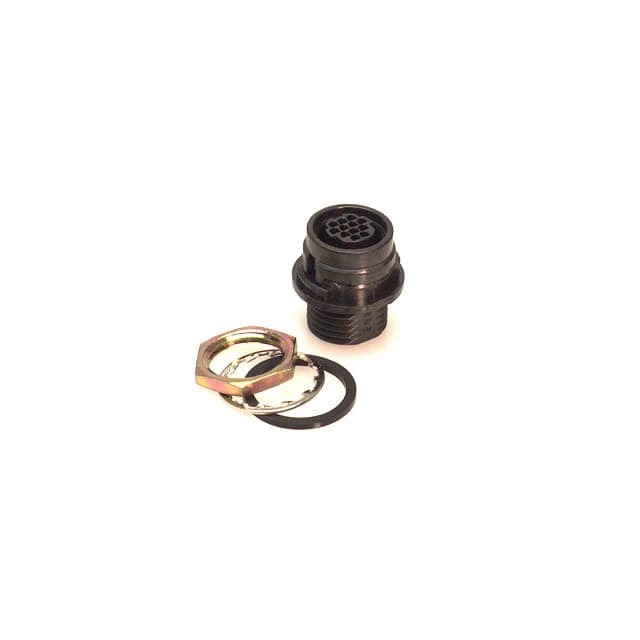

HR30-8R-12SC(71)
Same model may have multiple batches, images only for reference.

HR30-8R-12SC(71)

Part No HR30-8R-12SC(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT HSG FMALE 12POS PNL MT / 12 Position Circular Connector Receptacle Housing Panel Mount
Datasheet
HR30-8R-12SC(71) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr Hirose Electric Co Ltd
Series HR30
Package Tray
Product Status Obsolete
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 12
Shell Size - Insert 8
Contact Type Crimp
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Push-Pull
Orientation Keyed
Shell Material Polyphenylene Sulfide (PPS)
Housing Color Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Includes 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Insert Material Polyphenylene Sulfide (PPS)
Contact Shape Square
Temperature Range - Operating -25°C ~ 85°C
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 920593-HR30-8R-12SC(71)
Ultra Librarian 3D Model Ultra Librarian HR30-8R-12SC(71) CAD Model

Description

The 920593-HR30-8R-12SC(71) is a circular connector housing from the HR30 series manufactured by Hirose Electric Co Ltd.

  • Type: Receptacle housing
  • Socket Gender: Female sockets
  • Shell Size: 8
  • Material: Black polyphenylene sulfide (PPS)
  • Fastening Type: Push-pull
  • Ingress Protection: IP67/IP68
  • Contacts: Not included
  • Package: 50 pcs
  • Mounting: Panel mount
  • Temperature Range: -25°C to 85°C
  • ECCN: Compliant
  • HTSUS Code: 8538.90.6000
  • Status: Obsolete
