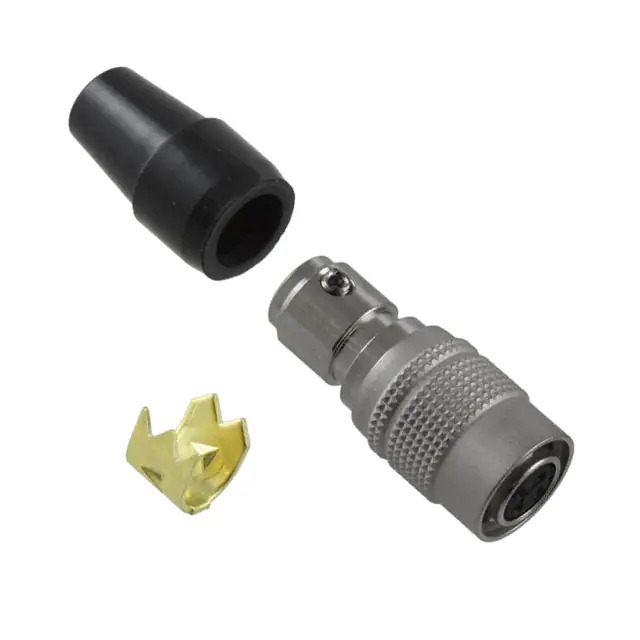

HR10A-7P-4S(73) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

HR10A-7P-4S(73)

Part No HR10A-7P-4S(73)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE 4P SOLDER CUP / 4 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
HR10A-7P-4S(73) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HR10A
Package Bulk
Product Status Active
Connector Type Plug, Female Sockets
Number of Positions 4
Shell Size - Insert 7
Shell Size, MIL -
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Ingress Protection -
Material Flammability Rating UL94 V-0
Features Backshell, Clamp, Strain Relief
Shielding Unshielded
Current Rating (Amps) 2A
Voltage Rating 150VAC, 200VDC
Cable Opening -
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Brass, Nickel
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Polyamide (PA), Nylon
Applications -
Base Product Number HR10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1366080-HR10A-7P-4S(73)
Ultra Librarian 3D Model Ultra Librarian HR10A-7P-4S(73) CAD Model

Description

The Hirose Electric Co Ltd HR10A-7P-4S(73) is a plug connector from the HR10A series.

  • Series: HR10A
  • Current Rating: 2A
  • Voltage Rating: 150VAC, 200VDC
  • Color: Silver
  • Fastening Type: Push-Pull
  • Number of Positions: 4
  • Termination Type: Solder Cup
  • Contact Finish: Silver
  • Contact Material: Phosphor Bronze
  • Shell Size: 7
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Insert Material: Polyamide (PA), Nylon
  • Primary Material: Metal
  • Packaging: Bulk
  • Product Status: Active
  • HTSUS Code: 8536.69.4020
  • ECCN: EAR99
