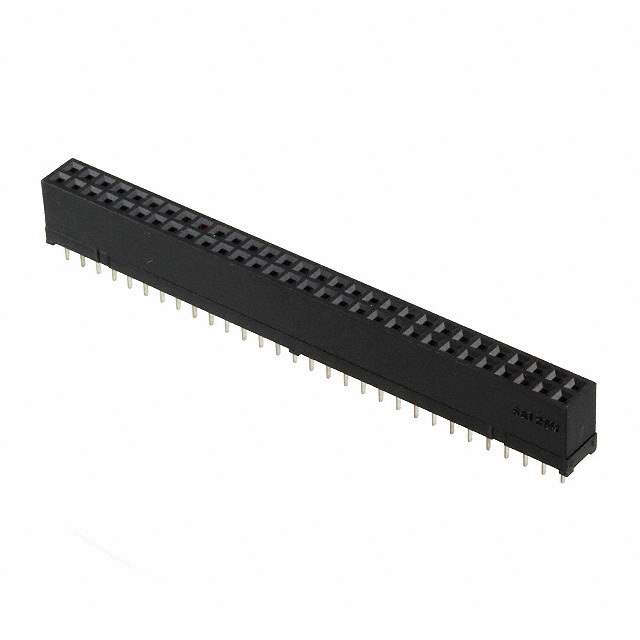

Same model may have multiple batches, images only for reference.

HIF3H-60DA-2.54DSA(71)

Get a Quote

Part No	HIF3H-60DA-2.54DSA(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 60POS 0.1 GOLD PCB / 60 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	HIF3H-60DA-2.54DSA(71) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	HIF3H
Package	Tray
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	60
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Insulation Color	Black
Insulation Height	0.374" (9.50mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Voltage Rating	300VAC
Applications	General Purpose
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	39.4µin (1.00µm)
Standard Package	50
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341148-HIF3H-60DA-2.54DSA(71)
Ultra Librarian 3D Model	Ultra Librarian HIF3H-60DA-2.54DSA(71) CAD Model

Alternative Products

Description

The HIF3H-60DA-2.54DSA(71) is a rectangular connector designed for board to board connections manufactured by Hirose Electric Co Ltd.

Connector Type: Receptacle
Number of Positions: 60
Mounting Type: Through Hole
Termination: Solder
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Voltage Rating: 300VAC
Current Rating (Amps): 3A
Flammability Rating: UL94 V-0
Operating Temperature: -55°C ~ 85°C
Packaging: Tray
Row Spacing: 0.100" (2.54mm)
Contact Length - Post: 0.118" (3.00mm)
Insulation Color: Black
Insulation Height: 0.374" (9.50mm)
