Same model may have multiple batches, images only for reference.

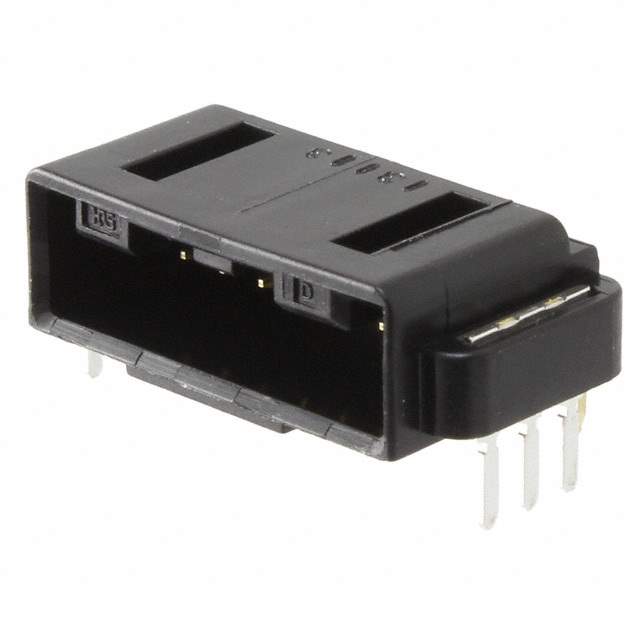

GT8E-8P-DS Real Image
Same model may have multiple batches, images only for reference.

GT8E-8P-DS

Part No GT8E-8P-DS
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER R/A 8POS 2MM / Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
Datasheet
GT8E-8P-DS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series GT8E
Package Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Insulation Color Black
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H122077,758-0043-8-00,GT8E-8P-DS-ND
Standard Package 112
Win Source Part Number 1013939-GT8E-8P-DS
Ultra Librarian 3D Model Ultra Librarian GT8E-8P-DS CAD Model

Description

The GT8E-8P-DS from Hirose Electric Co Ltd is a rectangular connector with a pitch of 0.079" (2.00mm) and 8 positions.

  • Contact Type: Male pin header
  • Row: 1
  • Contact Finish: Tin
  • Mounting: Through-hole and right-angle
  • Package: Tray
  • Contact Material: Brass
  • Insulation Material: Polybutylene terephthalate (PBT)
  • ECCN: EAR99 compliant
  • HTSUS code: 8536.69.4040
  • Status: Obsolete
