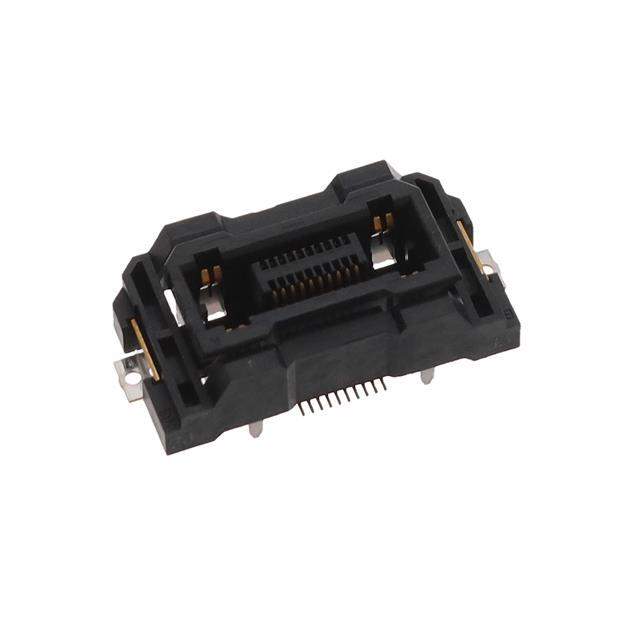

FX23L-20S-0.5SV

Name: FX23L-20S-0.5SV
Brand: Hirose Electric Co Ltd
SKU: 1337131
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FX23L-20S-0.5SV
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT / 24 (20 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	FunctionMax™ FX23L
Package	Bulk
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	24 (20 + 4 Power)
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Height Above Board	0.228" (5.80mm)
Base Product Number	FX23
Standard Package	90
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337131-FX23L-20S-0.5SV
Ultra Librarian 3D Model	Ultra Librarian FX23L-20S-0.5SV CAD Model

Alternative Products

Description

The FX23L-20S-0.5SV is a 24 (20 + 4 Power) position FunctionMax™ FX23L connector from Hirose Electric Co Ltd.

Pitch: 0.020 inches (0.50mm)
Type: Receptacle
Contact Type: Center Strip
Height Above Board: 0.228 inches (5.80mm)
Mounting Type: Surface Mount
Standard Package: 90
Series: FX23
Features: Board Guide, Pick and Place
