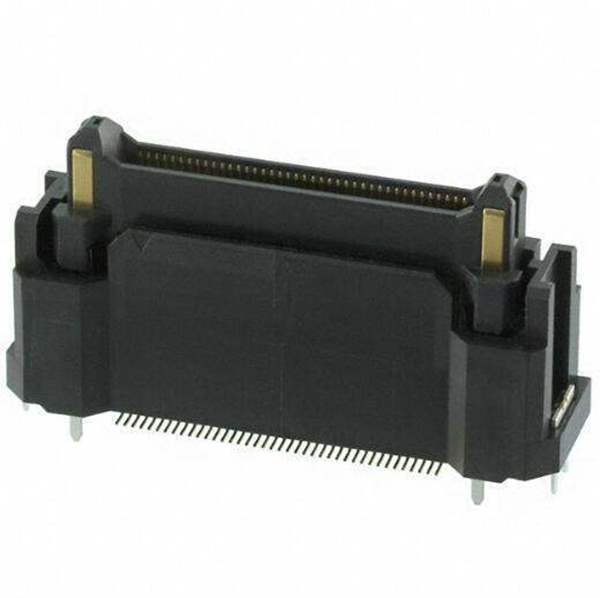

FX23-80P-0.5SV20Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX23-80P-0.5SV20

Part No FX23-80P-0.5SV20
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 80POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Packaging  Tray
Part Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 84 (80 + 4 Power)
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Win Source Part Number WS1305471-FX23-80P-0.5SV20
Ultra Librarian 3D Model Ultra Librarian FX23-80P-0.5SV20 CAD Model

Description

84 (80 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
