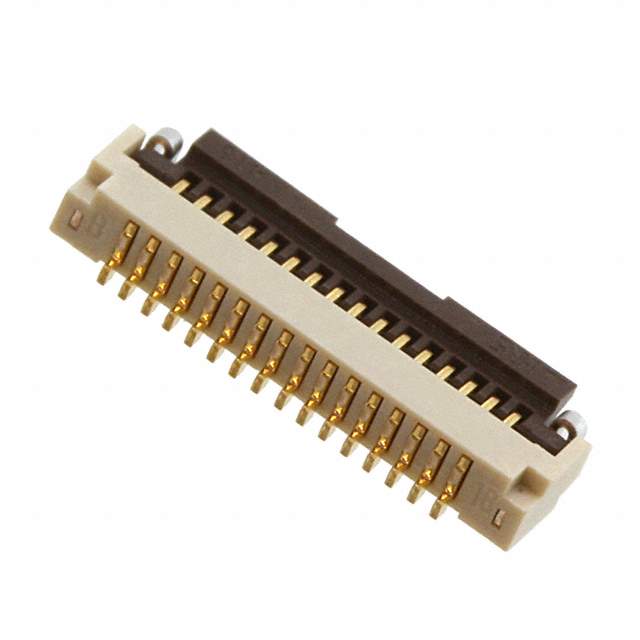

FH33M-16S-0.4SH(10) Real Image
Same model may have multiple batches, images only for reference.

FH33M-16S-0.4SH(10)

Part No FH33M-16S-0.4SH(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 16POS 0.40MM R/A / 16 Position FFC, FPC Connector Contacts, Bottom 0.016" (0.40mm) Surface Mount, Right Angle
Datasheet
FH33M-16S-0.4SH(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 16
Pitch 0.016" (0.40mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 40V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.4A
Contact Finish Thickness Flash
Mating Cycles 20
Base Product Number FH33
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number HFS316TR,HFS316DKR,HFS316CT,FH33M16S04SH10,580-1319-7-10
Standard Package 5,000
Win Source Part Number 1333412-FH33M-16S-0.4SH(10)
Ultra Librarian 3D Model Ultra Librarian FH33M-16S-0.4SH(10) CAD Model

Description

This electronic component is manufactured by Hirose Electric Co Ltd and has the Win Source Part Number 1333412-FH33M-16S-0.4SH(10).

  • Category: FFC, FPC (Flat Flexible) Connector Assemblies
  • Pitch: 0.016" (0.40mm)
  • Zero Insertion Force (ZIF): Yes
  • Termination: Solder
  • Contact Finish: Gold with a flash thickness
  • Voltage Rating: 40V
  • Current Rating: 0.4A
  • RoHS Compliant: Yes
