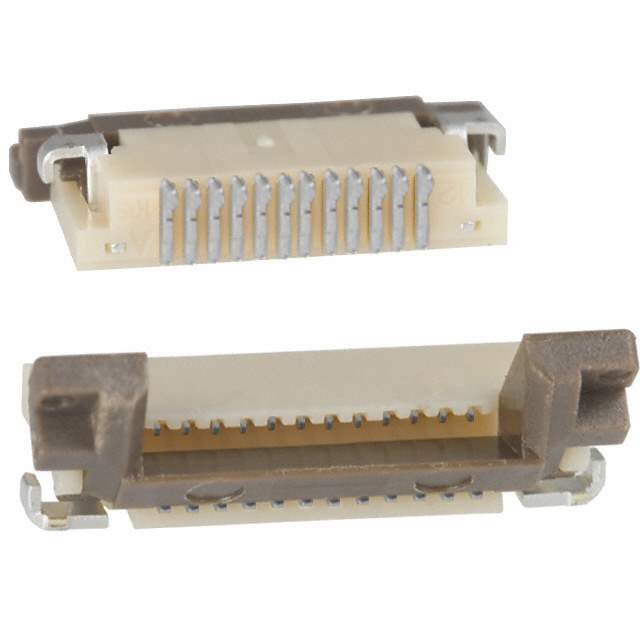

FH12A-12S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FH12A-12S-0.5SH

Part No FH12A-12S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 12POS 0.50MM R/A / 12 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH12A-12S-0.5SH Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 12
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number *FH12A-12S-0.5SH,FH12A12S05SH,HFK12CT,HFK12TR
Standard Package 2,000
Win Source Part Number 1333332-FH12A-12S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH12A-12S-0.5SH CAD Model

Description

The FH12A-12S-0.5SH is a connector assembly from Hirose Electric Co Ltd with a pitch of 0.020" (0.50mm) and a number of positions of 12.

  • Insertion Force: zero insertion force (ZIF)
  • Termination: solder
  • Mounting Type: surface mount, right angle
  • Temperature Range: -40°C to 85°C
