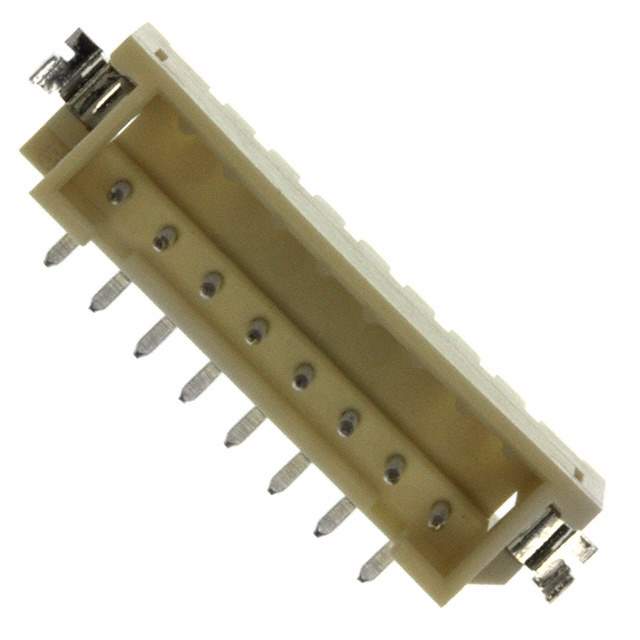

Same model may have multiple batches, images only for reference.

DF3DZ-8P-2V(21)

Name: DF3DZ-8P-2V(21)
Brand: Hirose Electric Co Ltd
SKU: 1332897
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF3DZ-8P-2V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 8POS 2MM / Connector Header Surface Mount 8 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.232" (5.90mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	3A
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	DF3DZ8P2V21,HR1999DKR,HR1999CT,HR1999TR
Standard Package	1,000
Win Source Part Number	1332897-DF3DZ-8P-2V(21)
Ultra Librarian 3D Model	Ultra Librarian DF3DZ-8P-2V(21) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF3DZ-8P-2V(21) is a one-row, 8-position rectangular connector header with a 0.079" (2.00mm) pitch.

Rows: 1
Positions: 8
Type: Rectangular Connector Header
Pitch: 0.079" (2.00mm)
Mounting Type: Surface Mount
Fastening Type: Push-Pull
Contact Type: Male Pin
Contact Finish: Tin
Current Rating: 3A
RoHS Compliant: Yes
Standard Package: 1,000
Applications: Board to Board or Cable
