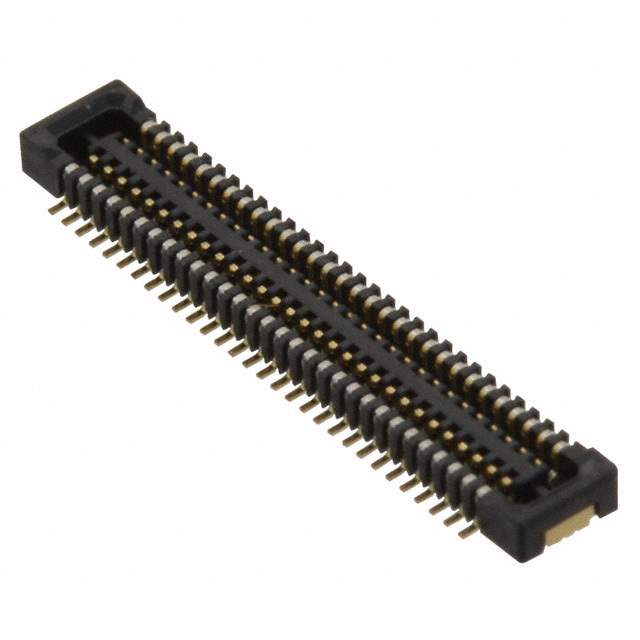

DF37NB-60DS-0.4V(51)

Part No DF37NB-60DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 60POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1032990-DF37NB-60DS-0.4V(51)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian DF37NB-60DS-0.4V(51) CAD Model

Description

DF37NB-60DS-0.4V(51) from Hirose Electric Co Ltd is a fine-pitch rectangular board-to-board receptacle designed for compact electronic assemblies where height, density, and reliable SMT processing are critical. With 60 positions, 0.40 mm pitch, dual-row construction, gold-plated contacts, and solder retention features, it fits space-constrained designs such as portable devices, industrial control modules, embedded computing boards, display interfaces, and other high-density interconnect applications. As an active Hirose connector with sufficient supply status reported, it is well positioned for ongoing procurement, although lifecycle should still be confirmed through official manufacturer channels because broader lifecycle data is listed as unknown. Based on the provided information, no explicit RoHS declaration is included, so compliance information is not available from the current dataset and should be verified using the official datasheet, manufacturer documentation, or distributor compliance records. For engineers seeking a low-profile stacking connector in production-ready SMT packaging, this part offers a practical balance of density, manufacturability, and sourcing availability.
