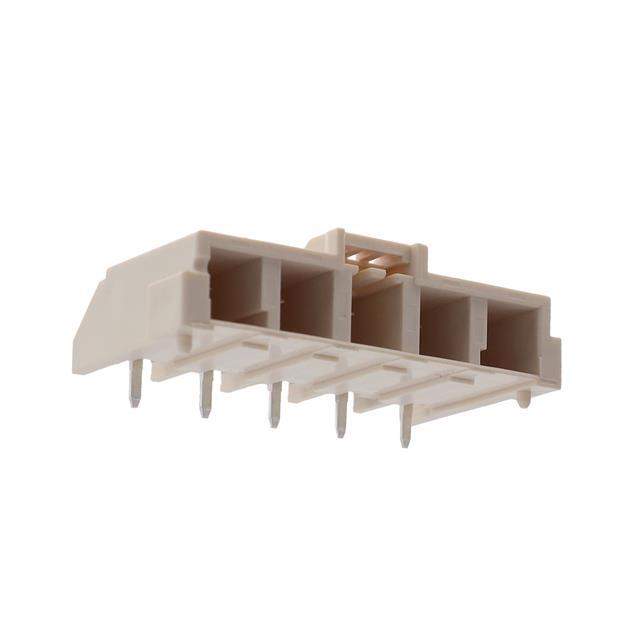

DF22-5P-7.92DS(53)

Name: DF22-5P-7.92DS(53)
Brand: Hirose Electric Co Ltd
SKU: 1350265
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF22-5P-7.92DS(53)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 5POS 7.92MM / Connector Header Through Hole, Right Angle 5 position 0.312" (7.92mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF22
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.354" (9.00mm)
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.480" (12.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA) , Nylon
Features	Board Guide
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	1000VAC/DC
Contact Finish Thickness - Post	8.00µin (0.203µm)
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350265-DF22-5P-7.92DS(53)
Ultra Librarian 3D Model	Ultra Librarian DF22-5P-7.92DS(53) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd EnerBee™ DF22 series male pin header connector is a 5-position header connector with a solder termination. Hirose Electric Co Ltd

Mating Pitch: 0.312-inch (7.92mm)
Number of Positions: 5
Termination Type: Solder
Fastening Type: Latch Holder
Shrouded: 4-Wall
Contact Material: Copper Alloy
Insulation Material: Polyamide (PA)
Connector Type: Header, Male Pins
Connector System: Board-to-Cable/Wire
Contact Finish: Gold
Contact Finish Thickness: 8.00µin (0.203µm)
Mounting Type: Through Hole, Right Angle
Board Guide: Yes
Operating Temperature: -55°C to 85°C
Current Rating: Varies by Wire Gauge
Standard Package: 100
