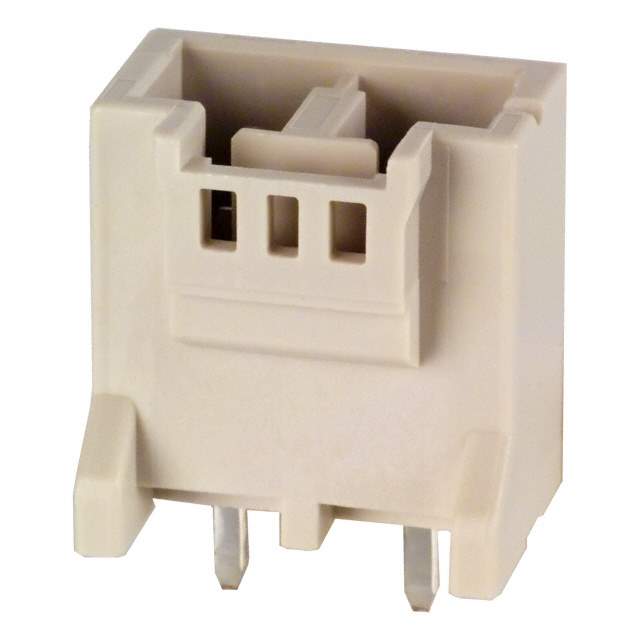

DF22-2P-7.92DSA(05)

Name: DF22-2P-7.92DSA(05)
Brand: Hirose Electric Co Ltd
SKU: 1293316
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF22-2P-7.92DSA(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF22
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.354" (9.00mm)
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.713" (18.10mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Copper
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	25A
Voltage Rating	1000V
Mated Stacking Heights	25.7mm, 28.7mm
Other Names	H10714,DF222P792DSA05,*DF22-2P-7.92DSA(05),680-1014-8-05
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293316-DF22-2P-7.92DSA(05)
Ultra Librarian 3D Model	Ultra Librarian DF22-2P-7.92DSA(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd EnerBee™ DF22 1293316-DF22-2P-7.92DSA(05) is a connector with board guide features.

Connector Type: Header
Contact Gender: Male Pin
Positions Loaded: All
Number of Rows: 1
Termination Type: Soldering
Fastening Type: Latch Holder
Package: Bulk
Contact Material: Copper Alloy
Voltage Rating: 1000V
Wall Type: Shrouded-4 Wall
Contact Shape: Square
Lifecycle Status: Obsolete
Current Rating (Amps): 25A
Operating Temperature: -35°C to 85°C
