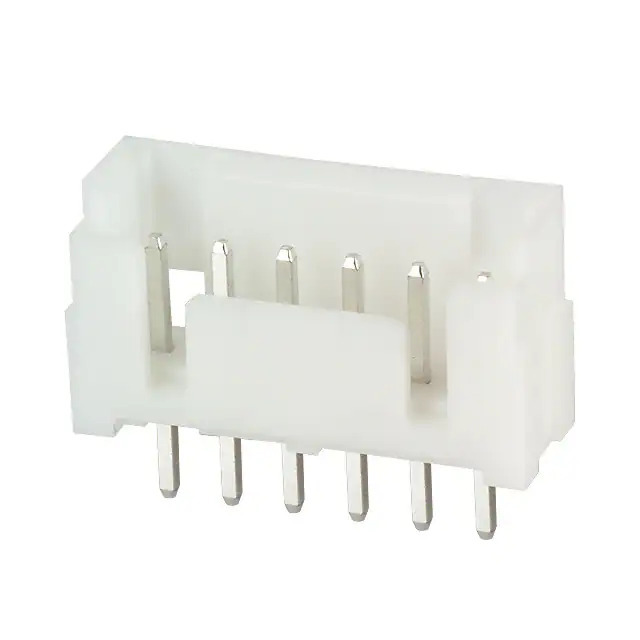

DF1BZ-6P-2.5DSA Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF1BZ-6P-2.5DSA

Part No DF1BZ-6P-2.5DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.5MM / Connector Header Through Hole 6 position 0.098" (2.50mm)
Datasheet
DF1BZ-6P-2.5DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) -
Voltage Rating 250V
Mated Stacking Heights 14mm
Contact Finish Thickness - Post -
Applications -
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362501-DF1BZ-6P-2.5DSA
Ultra Librarian 3D Model Ultra Librarian DF1BZ-6P-2.5DSA CAD Model

Description

The Hirose Electric Co Ltd DF1B series is a header connector with a 6-pin configuration.

  • Configuration: 6-Pin
  • Feature: Keying Slot
  • Application: Board to Cable/Wire
  • Pitch: 0.098" (2.50mm)
  • Feature: Shrouded with 4 Walls
  • Contact Material: Brass with Tin Finish
  • Insulation Material: Polyamide (PA) and Nylon
  • Voltage Rating: 250V
  • Contact Length: 0.417" (10.60mm)
  • Insulation Height: 0.374" (9.50mm)
  • Mounting Type: Through-Hole
  • Termination: Solder
  • Status: Active
  • Temperature Range: -35°C to 85°C
