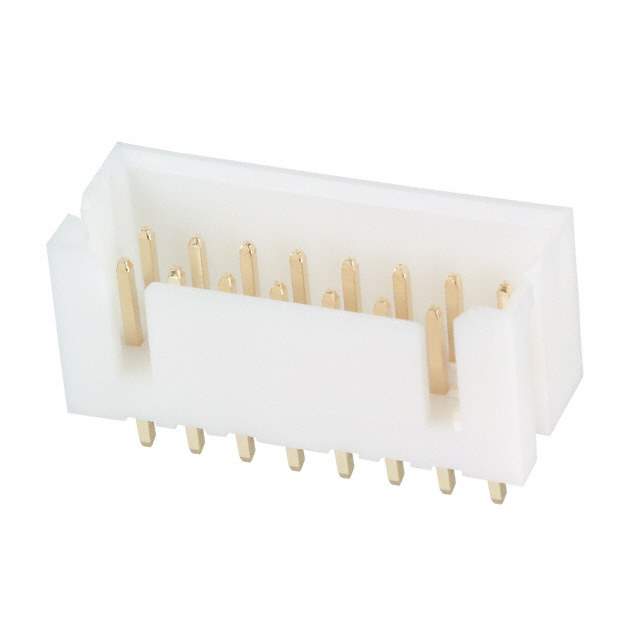

DF1B-16DP-2.5DSA(01) Real Image
Same model may have multiple batches, images only for reference.

DF1B-16DP-2.5DSA(01)

Part No DF1B-16DP-2.5DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.5MM / Connector Header Through Hole 16 position 0.098" (2.50mm)
Datasheet
DF1B-16DP-2.5DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Voltage Rating 250V
Mated Stacking Heights 14mm
Base Product Number DF1B
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 541-0619-2-01,*DF1B-16DP-2.5DSA(01),*DF1B-16DP-2.5DSA(01,DF1B16DP25DSA01,H3672
Standard Package 100
Win Source Part Number 1332886-DF1B-16DP-2.5DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF1B-16DP-2.5DSA(01) CAD Model

Description

The Hirose Electric Co Ltd DF1B-16DP-2.5DSA(01) is a 16-position male pin header connector with a keying slot and two rows.

  • Positions: 16
  • Rows: 2
  • Keying Slot: Yes
  • Connection Style: Board-to-Cable/Wire
  • Pitch: 0.098 inches (2.50mm)
  • Contact Material: Brass
  • Contact Plating: Gold
  • Voltage Rating: Up to 250V
  • Insulation Material: Polyamide (PA) or Nylon
  • Flammability Rating: UL94 V-0
  • Shrouding: Shrouded with Four Walls
  • Row Spacing: 0.098 inches (2.50mm)
  • Overall Contact Length: 0.417 inches (10.60mm)
  • Insulation Height: 0.374 inches (9.50mm)
  • Temperature Range: -35°C to 85°C
