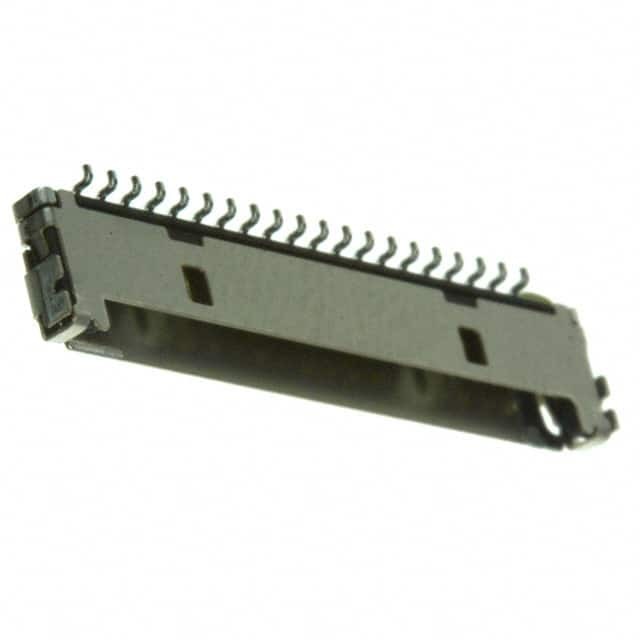

DF19G-20P-1H(54)
Same model may have multiple batches, images only for reference.

DF19G-20P-1H(54)

Part No DF19G-20P-1H(54)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 20POS 1MM / Connector Header Surface Mount, Right Angle 20 position 0.039" (1.00mm)
Datasheet
DF19G-20P-1H(54) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF19
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 20
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.065" (1.65mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Tin-Copper
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Glow Wire Compliant, Shielded, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 100V
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number DF19G
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849052-DF19G-20P-1H(54)
Ultra Librarian 3D Model Ultra Librarian DF19G-20P-1H(54) CAD Model

Description

The 849052-DF19G-20P-1H(54) is a rectangular connector header designed for use in electronic devices and is part of the DF19 series of connectors.

  • Connector Type: Header, Male Pin
  • Positions: 20
  • Row Loading: Single
  • Features: Glow Wire Compliant, Shielding, Solder Retention
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 100V
  • Application: Board to Cable/Wire
  • Pitch: 0.039" (1.00mm)
  • Mating Contact Finish: Gold
  • Mounting: Surface Mount
  • Mounting Angle: Right Angle
  • Operating Temperature: -35°C to 85°C
  • Product Status: Obsolete
