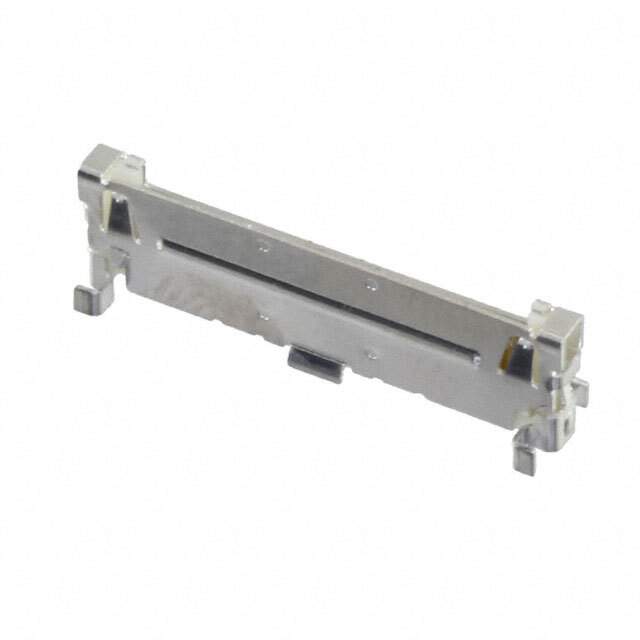

DF19-14P-1V(56) Real Image
Same model may have multiple batches, images only for reference.

DF19-14P-1V(56)

Part No DF19-14P-1V(56)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount 14 position 0.039" (1.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF19
Package Reel - TR
Operating Temperature Range -35°C ~ 85°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 685-0036-7-56, -DF19-14P-1V(56), H124586CT, *DF19-14P-1V(56)-ND, DF19-14P-1V(56)-ND, -DF19-14P-1V(56)-ND, *DF19-14P-1V(56)CT-ND, *DF19-14P-1V(56)DKR-ND, H124586TR, *DF19-14P-1V(56), -DF19-14P-1V(56)DKR, -DF19-14P-1V(56)CT, H124586DKR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916970-DF19-14P-1V(56)
Ultra Librarian 3D Model Ultra Librarian DF19-14P-1V(56) CAD Model

Description

The Hirose Electric Co Ltd DF19-14P-1V(56) is a 14 position connector header surface mount with a pitch of 0.039" (1.00mm).

  • It is suitable for: surface mount mounting
  • And has an operating temperature range of: -35°C to 85°C
  • The connector is supplied in a: reel-TR packaging
  • And has an: ECCN of EAR99
  • The connector is: popular
  • And has a: high demand and supply status
