Same model may have multiple batches, images only for reference.

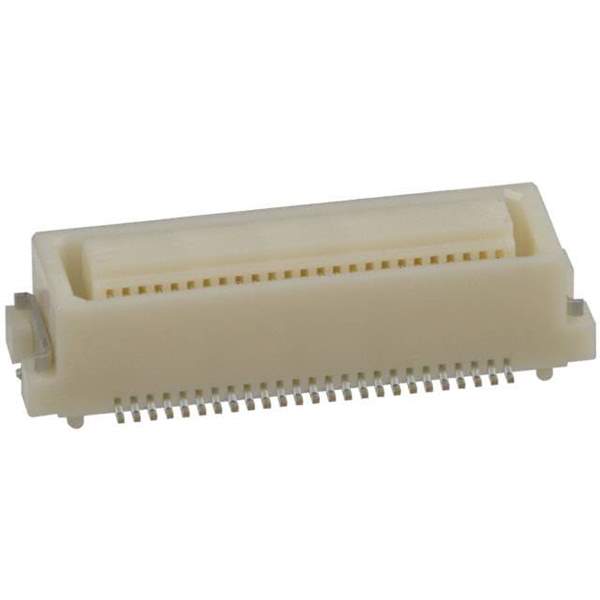

DF17(4.0)-50DS-0.5V(57) Real Image
Same model may have multiple batches, images only for reference.

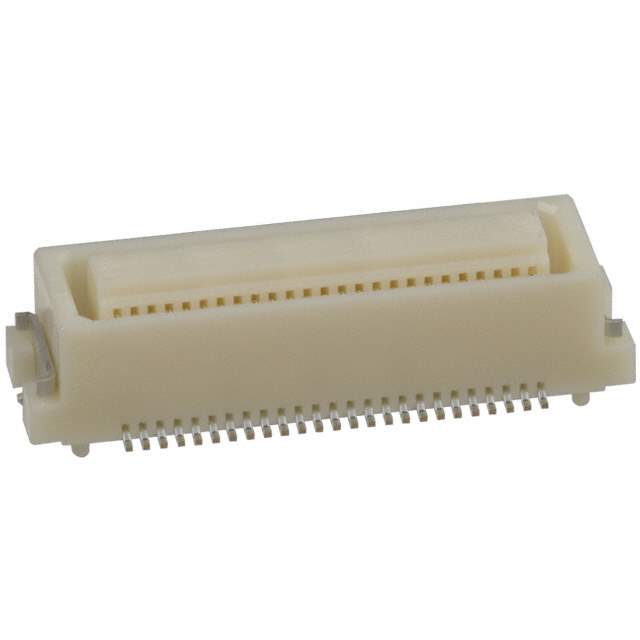

DF17(4.0)-50DS-0.5V(57)

Part No DF17(4.0)-50DS-0.5V(57)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 50POS SMD GOLD / 50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF17
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Mated Stacking Heights 6mm, 6.5mm, 8mm
Height Above Board 0.177" (4.50mm)
Base Product Number DF17
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H11117TR,*DF17(4.0)-50DS-0.5V(57),DF174050DS05V57,683-0045-5-57,H11117DKR,H11117CT
Standard Package 1,000
Win Source Part Number 1055337-DF17(4.0)-50DS-0.5V(57)
Ultra Librarian 3D Model Ultra Librarian DF17(4.0)-50DS-0.5V(57) CAD Model

Description

The Hirose Electric Co Ltd DF17(4.0)-50DS-0.5V(57) is a rectangular connector that is designed for use in arrays, edge type, mezzanine (board to board) connectors.

  • Positions: 50
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Receptacle with center strip contacts
  • Rows: Two
  • Contact Finish: Gold
  • Height Above Board: 0.177" (4.50mm)
  • Package: Tape and reel
  • Standard Package: 1,000
  • Mated Stacking Heights: 6mm, 6.5mm, and 8mm
