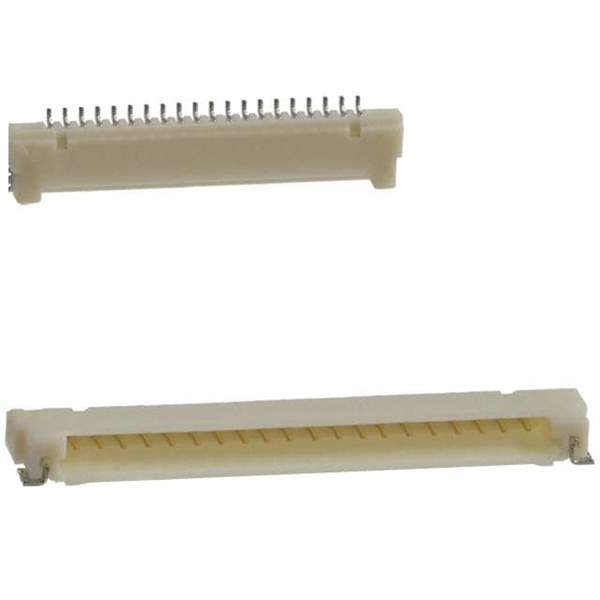

DF14A-20P-1.25H(55) Real Image
Same model may have multiple batches, images only for reference.

DF14A-20P-1.25H(55)

Part No DF14A-20P-1.25H(55)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 20POS 1.25MM / Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Datasheet
DF14A-20P-1.25H(55) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF14
Package Tube
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.086" (2.20mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Contact Finish Thickness - Post 39.4µin (1.00µm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF14A-20P-1.25H(55),5380119755,DF14A20P125H55,H10333
Standard Package 16
Win Source Part Number 1226107-DF14A-20P-1.25H(55)
Ultra Librarian 3D Model Ultra Librarian DF14A-20P-1.25H(55) CAD Model

Description

The DF14A-20P-1. This connector is a high-quality board-to-cable/wire connector that can be used in various applications such as computers, consumer electronics, and automotive equipment.

  • Size: compact size
  • Mounting: high-density mounting capability
  • Contact Reliability: high
  • Insertion Force: low
  • Temperature Resistance: high-temperature resistance
  • Solderability: excellent
