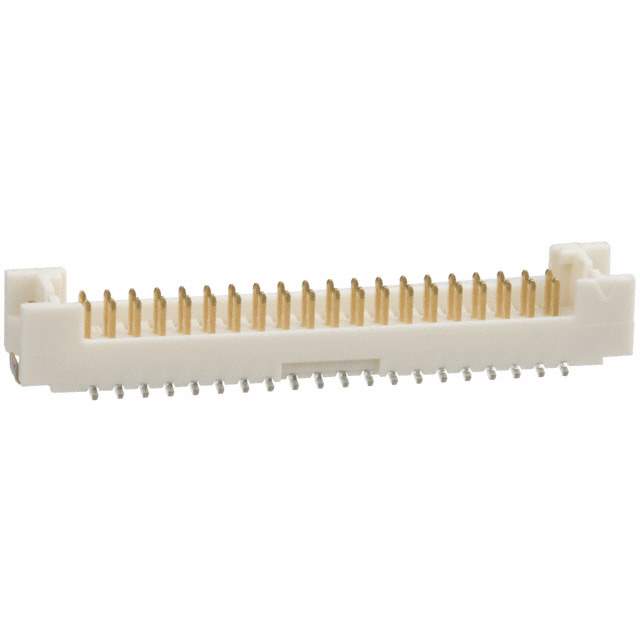

The DF13EA-40DP-1.25V(55) is a connector housing from Hirose Electric Co. Ltd., belonging to the DF13 series. This series is well-regarded for its compact size and reliable connection performance, making it ideal for signal and power connections within electronic devices where space is a premium.

Applications

• Consumer Electronics: Commonly found in digital cameras, camcorders, and portable audio devices.
• Industrial Automation: Used within control systems and automation equipment requiring secure connections.
• Medical Equipment: Implemented in various medical devices, ensuring reliable signal and power delivery.
• Office Equipment: Integrated into printers, scanners, and other office automation tools.
• Gaming Systems: Used in gaming consoles for connecting internal components.

Features

• Compact Footprint: Its small form factor allows for high-density mounting on circuit boards.
• 1.25mm Pitch: The fine pitch design maximizes board space utilization.
• Robust Locking: A secure locking mechanism prevents accidental disconnections due to vibration or movement.
• SMT Compatibility: Designed for Surface Mount Technology (SMT), enabling efficient and automated assembly processes.
• Durable Materials: Constructed from high-quality materials ensuring longevity and consistent performance.

Benefits

• Space Optimization: Saves valuable space on circuit boards, allowing for smaller device designs.
• Dependable Connectivity: Ensures a stable and secure connection, minimizing signal loss or interruption.
• Streamlined Manufacturing: SMT design simplifies the assembly process, reducing manufacturing time and costs.
• Versatile Use: Suitable for a broad range of applications requiring both signal and power connections.
• Extended Lifespan: Guarantees long-term performance thanks to its robust construction.

Additional Details

The DF13EA-40DP-1.25V(55) housing is generally molded from high-temperature resistant thermoplastics, making it compatible with reflow soldering processes. It accommodates 40 contacts, providing ample connectivity for complex circuits. The connector includes polarization features to prevent mis-mating, ensuring proper connection every time. Typically operates reliably within a temperature range of -25°C to +85°C. This series is particularly advantageous in applications where both size and reliability are critical factors.
